Base class for objects with automatic serialization through attributes. More...

#include </home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Scene/Serializable.h>

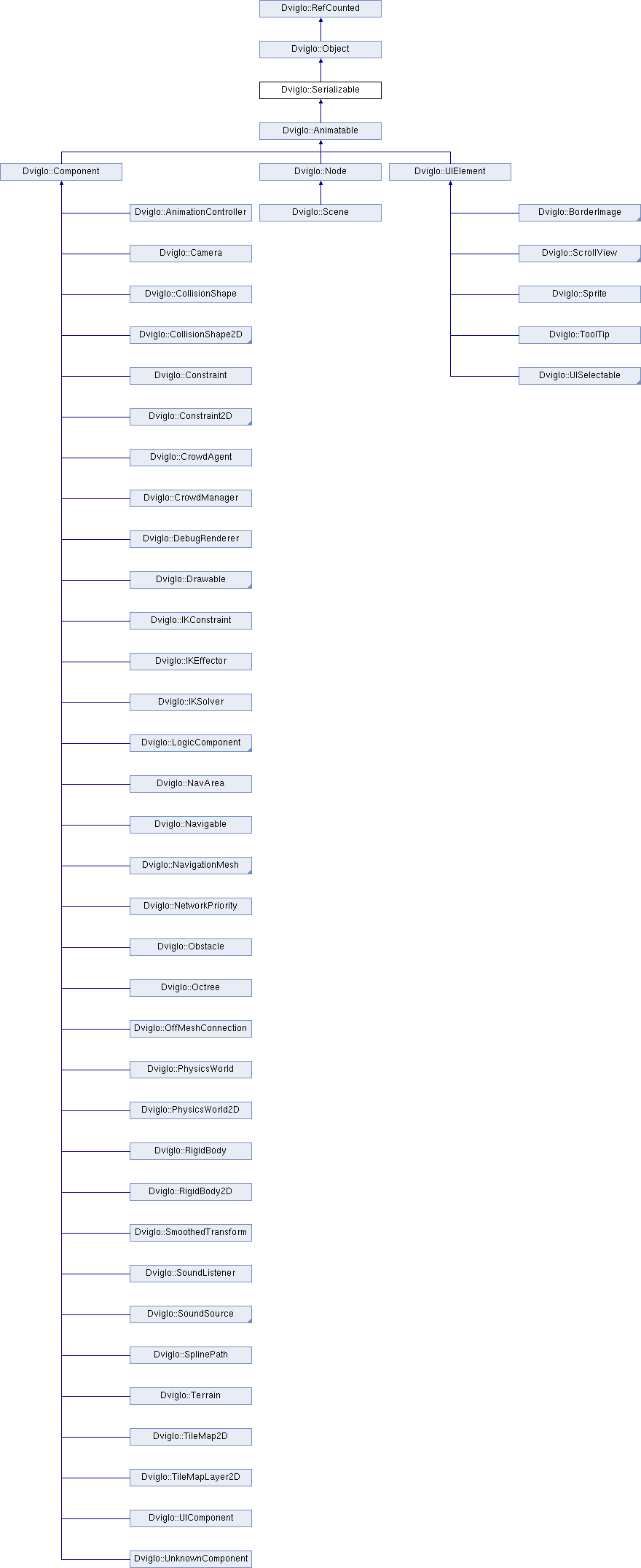

Inheritance diagram for Dviglo::Serializable:

Public Member Functions
	Serializable (Context *context)
	Construct.

	~Serializable () override
	Destruct.

virtual void	OnSetAttribute (const AttributeInfo &attr, const Variant &src)
	Handle attribute write access. Default implementation writes to the variable at offset, or invokes the set accessor.

virtual void	OnGetAttribute (const AttributeInfo &attr, Variant &dest) const
	Handle attribute read access. Default implementation reads the variable at offset, or invokes the get accessor.

virtual const Vector< AttributeInfo > *	GetAttributes () const
	Return attribute descriptions, or null if none defined.

virtual const Vector< AttributeInfo > *	GetNetworkAttributes () const
	Return network replication attribute descriptions, or null if none defined.

virtual bool	Load (Deserializer &source)
	Load from binary data. Return true if successful.

virtual bool	Save (Serializer &dest) const
	Save as binary data. Return true if successful.

virtual bool	LoadXML (const XMLElement &source)
	Load from XML data. Return true if successful.

virtual bool	SaveXML (XMLElement &dest) const
	Save as XML data. Return true if successful.

virtual bool	LoadJSON (const JSONValue &source)
	Load from JSON data. Return true if successful.

virtual bool	SaveJSON (JSONValue &dest) const
	Save as JSON data. Return true if successful.

virtual void	ApplyAttributes ()
	Apply attribute changes that can not be applied immediately. Called after scene load or a network update.

virtual bool	SaveDefaultAttributes () const
	Return whether should save default-valued attributes into XML. Default false.

virtual void	MarkNetworkUpdate ()
	Mark for attribute check on the next network update.

bool	SetAttribute (unsigned index, const Variant &value)

bool	SetAttribute (const String &name, const Variant &value)
	Set attribute by name. Return true if successfully set.

void	SetInstanceDefault (bool enable)
	Set instance-level default flag.

void	ResetToDefault ()
	Reset all editable attributes to their default values.

void	RemoveInstanceDefault ()
	Remove instance's default values if they are set previously.

void	SetTemporary (bool enable)

void	SetInterceptNetworkUpdate (const String &attributeName, bool enable)
	Enable interception of an attribute from network updates. Intercepted attributes are sent as events instead of applying directly. This can be used to implement client side prediction.

void	AllocateNetworkState ()
	Allocate network attribute state.

void	WriteInitialDeltaUpdate (Serializer &dest, unsigned char timeStamp)
	Write initial delta network update.

void	WriteDeltaUpdate (Serializer &dest, const DirtyBits &attributeBits, unsigned char timeStamp)
	Write a delta network update according to dirty attribute bits.

void	WriteLatestDataUpdate (Serializer &dest, unsigned char timeStamp)
	Write a latest data network update.

bool	ReadDeltaUpdate (Deserializer &source)
	Read and apply a network delta update. Return true if attributes were changed.

bool	ReadLatestDataUpdate (Deserializer &source)
	Read and apply a network latest data update. Return true if attributes were changed.

Variant	GetAttribute (unsigned index) const

Variant	GetAttribute (const String &name) const
	Return attribute value by name. Return empty if not found.

Variant	GetAttributeDefault (unsigned index) const

Variant	GetAttributeDefault (const String &name) const
	Return attribute default value by name. Return empty if not found.

unsigned	GetNumAttributes () const

unsigned	GetNumNetworkAttributes () const
	Return number of network replication attributes.

bool	IsTemporary () const

bool	GetInterceptNetworkUpdate (const String &attributeName) const
	Return whether an attribute's network updates are being intercepted.

NetworkState *	GetNetworkState () const
	Return the network attribute state, if allocated.

Public Member Functions inherited from Dviglo::Object
	Object (Context *context)
	Construct.

	~Object () override
	Destruct. Clean up self from event sender & receiver structures.

virtual StringHash	GetType () const =0

virtual const String &	GetTypeName () const =0

virtual const TypeInfo *	GetTypeInfo () const =0
	Return type info.

virtual void	OnEvent (Object *sender, StringHash eventType, VariantMap &eventData)
	Handle event.

bool	IsInstanceOf (StringHash type) const
	Check current instance is type of specified type.

bool	IsInstanceOf (const TypeInfo *typeInfo) const
	Check current instance is type of specified type.

template<typename T >
bool	IsInstanceOf () const
	Check current instance is type of specified class.

template<typename T >
T *	Cast ()
	Cast the object to specified most derived class.

template<typename T >
const T *	Cast () const
	Cast the object to specified most derived class.

void	SubscribeToEvent (StringHash eventType, EventHandler *handler)
	Subscribe to an event that can be sent by any sender.

void	SubscribeToEvent (Object sender, StringHash eventType, EventHandler handler)
	Subscribe to a specific sender's event.

void	SubscribeToEvent (StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to an event that can be sent by any sender.

void	SubscribeToEvent (Object sender, StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void userData=nullptr)
	Subscribe to a specific sender's event.

void	UnsubscribeFromEvent (StringHash eventType)
	Unsubscribe from an event.

void	UnsubscribeFromEvent (Object *sender, StringHash eventType)
	Unsubscribe from a specific sender's event.

void	UnsubscribeFromEvents (Object *sender)
	Unsubscribe from a specific sender's events.

void	UnsubscribeFromAllEvents ()
	Unsubscribe from all events.

void	UnsubscribeFromAllEventsExcept (const PODVector< StringHash > &exceptions, bool onlyUserData)
	Unsubscribe from all events except those listed, and optionally only those with userdata (script registered events).

void	SendEvent (StringHash eventType)
	Send event to all subscribers.

void	SendEvent (StringHash eventType, VariantMap &eventData)
	Send event with parameters to all subscribers.

VariantMap &	GetEventDataMap () const
	Return a preallocated map for event data. Used for optimization to avoid constant re-allocation of event data maps.

template<typename... Args>
void	SendEvent (StringHash eventType, Args... args)
	Send event with variadic parameter pairs to all subscribers. The parameter pairs is a list of paramID and paramValue separated by comma, one pair after another.

Context *	GetContext () const
	Return execution context.

const Variant &	GetGlobalVar (StringHash key) const

const VariantMap &	GetGlobalVars () const

void	SetGlobalVar (StringHash key, const Variant &value)

Object *	GetSubsystem (StringHash type) const
	Return subsystem by type.

Object *	GetEventSender () const
	Return active event sender. Null outside event handling.

EventHandler *	GetEventHandler () const
	Return active event handler. Null outside event handling.

bool	HasSubscribedToEvent (StringHash eventType) const
	Return whether has subscribed to an event without specific sender.

bool	HasSubscribedToEvent (Object *sender, StringHash eventType) const
	Return whether has subscribed to a specific sender's event.

bool	HasEventHandlers () const
	Return whether has subscribed to any event.

template<class T >
T *	GetSubsystem () const
	Template version of returning a subsystem.

const String &	GetCategory () const

void	SetBlockEvents (bool block)
	Block object from sending and receiving events.

bool	GetBlockEvents () const
	Return sending and receiving events blocking status.

Public Member Functions inherited from Dviglo::RefCounted
	RefCounted ()
	Construct. Allocate the reference count structure and set an initial self weak reference.

virtual	~RefCounted ()
	Destruct. Mark as expired and also delete the reference count structure if no outside weak references exist.

	RefCounted (const RefCounted &rhs)=delete
	Prevent copy construction.

RefCounted &	operator= (const RefCounted &rhs)=delete
	Prevent assignment.

void	AddRef ()

void	ReleaseRef ()

int	Refs () const

int	WeakRefs () const

RefCount *	RefCountPtr ()
	Return pointer to the reference count structure.

Protected Attributes
UniquePtr< NetworkState >	networkState_
	Network attribute state.

Protected Attributes inherited from Dviglo::Object
Context *	context_
	Execution context.

Private Member Functions
	URHO3D_OBJECT (Serializable, Object)

void	SetInstanceDefault (const String &name, const Variant &defaultValue)
	Set instance-level default value. Allocate the internal data structure as necessary.

Variant	GetInstanceDefault (const String &name) const
	Get instance-level default value.

Private Attributes
UniquePtr< VariantMap >	instanceDefaultValues_
	Attribute default value at each instance level.

bool	setInstanceDefault_
	When true, store the attribute value as instance's default value (internal use only).

bool	temporary_
	Temporary flag.

Additional Inherited Members
Static Public Member Functions inherited from Dviglo::Object
static const TypeInfo *	GetTypeInfoStatic ()
	Return type info static.

Detailed Description

Base class for objects with automatic serialization through attributes.

Member Function Documentation

◆ GetAttribute()

Variant Dviglo::Serializable::GetAttribute ( unsigned index ) const

Return attribute value by index. Return empty if illegal index.

◆ GetAttributeDefault()

Variant Dviglo::Serializable::GetAttributeDefault ( unsigned index ) const

Return attribute default value by index. Return empty if illegal index.

◆ GetNumAttributes()

unsigned Dviglo::Serializable::GetNumAttributes ( ) const

Return number of attributes.

◆ IsTemporary()

bool Dviglo::Serializable::IsTemporary ( ) const

inline

Return whether is temporary.

◆ SetAttribute()

bool Dviglo::Serializable::SetAttribute	(	unsigned	index,
		const Variant &	value
	)

Set attribute by index. Return true if successfully set.

◆ SetTemporary()

void Dviglo::Serializable::SetTemporary ( bool enable )

Set temporary flag. Temporary objects will not be saved.

The documentation for this class was generated from the following files:

/home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Scene/Serializable.h
/home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Scene/Serializable.cpp
