Dviglo::AnimatedModel Class Reference

Animated model component. More...

#include </home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Graphics/AnimatedModel.h>

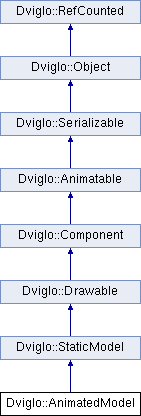

Inheritance diagram for Dviglo::AnimatedModel:

Public Member Functions
	AnimatedModel (Context *context)
	Construct.
	~AnimatedModel () override
	Destruct.
bool	Load (Deserializer &source) override
	Load from binary data. Return true if successful.
bool	LoadXML (const XMLElement &source) override
	Load from XML data. Return true if successful.
bool	LoadJSON (const JSONValue &source) override
	Load from JSON data. Return true if successful.
void	ApplyAttributes () override
	Apply attribute changes that can not be applied immediately. Called after scene load or a network update.
void	ProcessRayQuery (const RayOctreeQuery &query, PODVector< RayQueryResult > &results) override
	Process octree raycast. May be called from a worker thread.
void	Update (const FrameInfo &frame) override
	Update before octree reinsertion. Is called from a worker thread.
void	UpdateBatches (const FrameInfo &frame) override
	Calculate distance and prepare batches for rendering. May be called from worker thread(s), possibly re-entrantly.
void	UpdateGeometry (const FrameInfo &frame) override
	Prepare geometry for rendering. Called from a worker thread if possible (no GPU update).
UpdateGeometryType	GetUpdateGeometryType () override
	Return whether a geometry update is necessary, and if it can happen in a worker thread.
void	DrawDebugGeometry (DebugRenderer *debug, bool depthTest) override
	Visualize the component as debug geometry.
void	SetModel (Model *model, bool createBones=true)
	Set model.
AnimationState *	AddAnimationState (Animation *animation)
	Add an animation.
void	RemoveAnimationState (Animation *animation)
	Remove an animation by animation pointer.
void	RemoveAnimationState (const String &animationName)
	Remove an animation by animation name.
void	RemoveAnimationState (StringHash animationNameHash)
	Remove an animation by animation name hash.
void	RemoveAnimationState (AnimationState *state)
	Remove an animation by AnimationState pointer.
void	RemoveAnimationState (unsigned index)
	Remove an animation by index.
void	RemoveAllAnimationStates ()
	Remove all animations.
void	SetAnimationLodBias (float bias)
void	SetUpdateInvisible (bool enable)
void	SetMorphWeight (unsigned index, float weight)
	Set vertex morph weight by index.
void	SetMorphWeight (const String &name, float weight)
void	SetMorphWeight (StringHash nameHash, float weight)
	Set vertex morph weight by name hash.
void	ResetMorphWeights ()
	Reset all vertex morphs to zero.
void	ApplyAnimation ()
	Apply all animation states to nodes.
Skeleton &	GetSkeleton ()
const Vector< SharedPtr< AnimationState > > &	GetAnimationStates () const
	Return all animation states.
unsigned	GetNumAnimationStates () const
AnimationState *	GetAnimationState (Animation *animation) const
	Return animation state by animation pointer.
AnimationState *	GetAnimationState (const String &animationName) const
AnimationState *	GetAnimationState (StringHash animationNameHash) const
	Return animation state by animation name hash.
AnimationState *	GetAnimationState (unsigned index) const
	Return animation state by index.
float	GetAnimationLodBias () const
bool	GetUpdateInvisible () const
const Vector< ModelMorph > &	GetMorphs () const
	Return all vertex morphs.
const Vector< SharedPtr< VertexBuffer > > &	GetMorphVertexBuffers () const
	Return all morph vertex buffers.
unsigned	GetNumMorphs () const
float	GetMorphWeight (unsigned index) const
	Return vertex morph weight by index.
float	GetMorphWeight (const String &name) const
float	GetMorphWeight (StringHash nameHash) const
	Return vertex morph weight by name hash.
bool	IsMaster () const
	Return whether is the master (first) animated model.
void	SetModelAttr (const ResourceRef &value)
	Set model attribute.
void	SetBonesEnabledAttr (const VariantVector &value)
	Set bones' animation enabled attribute.
void	SetAnimationStatesAttr (const VariantVector &value)
	Set animation states attribute.
void	SetMorphsAttr (const PODVector< unsigned char > &value)
	Set morphs attribute.
ResourceRef	GetModelAttr () const
	Return model attribute.
VariantVector	GetBonesEnabledAttr () const
	Return bones' animation enabled attribute.
VariantVector	GetAnimationStatesAttr () const
	Return animation states attribute.
const PODVector< unsigned char > &	GetMorphsAttr () const
	Return morphs attribute.
const Vector< PODVector< unsigned > > &	GetGeometryBoneMappings () const
	Return per-geometry bone mappings.
const Vector< PODVector< Matrix3x4 > > &	GetGeometrySkinMatrices () const
	Return per-geometry skin matrices. If empty, uses global skinning.
void	UpdateBoneBoundingBox ()
	Recalculate the bone bounding box. Normally called internally, but can also be manually called if up-to-date information before rendering is necessary. More...
Public Member Functions inherited from Dviglo::StaticModel
	StaticModel (Context *context)
	Construct.
	~StaticModel () override
	Destruct.
void	ProcessRayQuery (const RayOctreeQuery &query, PODVector< RayQueryResult > &results) override
	Process octree raycast. May be called from a worker thread.
void	UpdateBatches (const FrameInfo &frame) override
	Calculate distance and prepare batches for rendering. May be called from worker thread(s), possibly re-entrantly.
Geometry *	GetLodGeometry (unsigned batchIndex, unsigned level) override
	Return the geometry for a specific LOD level.
unsigned	GetNumOccluderTriangles () override
	Return number of occlusion geometry triangles.
bool	DrawOcclusion (OcclusionBuffer *buffer) override
	Draw to occlusion buffer. Return true if did not run out of triangles.
virtual void	SetModel (Model *model)
virtual void	SetMaterial (Material *material)
virtual bool	SetMaterial (unsigned index, Material *material)
void	SetOcclusionLodLevel (unsigned level)
void	ApplyMaterialList (const String &fileName=String::EMPTY)
	Apply default materials from a material list file. If filename is empty (default), the model's resource name with extension .txt will be used.
Model *	GetModel () const
unsigned	GetNumGeometries () const
virtual Material *	GetMaterial () const
virtual Material *	GetMaterial (unsigned index) const
unsigned	GetOcclusionLodLevel () const
bool	IsInside (const Vector3 &point) const
	Determines if the given world space point is within the model geometry.
bool	IsInsideLocal (const Vector3 &point) const
	Determines if the given local space point is within the model geometry.
void	SetModelAttr (const ResourceRef &value)
	Set model attribute.
void	SetMaterialsAttr (const ResourceRefList &value)
	Set materials attribute.
ResourceRef	GetModelAttr () const
	Return model attribute.
const ResourceRefList &	GetMaterialsAttr () const
	Return materials attribute.
Public Member Functions inherited from Dviglo::Drawable
	Drawable (Context *context, unsigned char drawableFlags)
	Construct.
	~Drawable () override
	Destruct.
void	OnSetEnabled () override
	Handle enabled/disabled state change.
void	DrawDebugGeometry (DebugRenderer *debug, bool depthTest) override
	Visualize the component as debug geometry.
void	SetDrawDistance (float distance)
void	SetShadowDistance (float distance)
void	SetLodBias (float bias)
void	SetViewMask (unsigned mask)
void	SetLightMask (unsigned mask)
void	SetShadowMask (unsigned mask)
void	SetZoneMask (unsigned mask)
void	SetMaxLights (unsigned num)
void	SetCastShadows (bool enable)
void	SetOccluder (bool enable)
void	SetOccludee (bool enable)
void	MarkForUpdate ()
	Mark for update and octree reinsertion. Update is automatically queued when the drawable's scene node moves or changes scale.
const BoundingBox &	GetBoundingBox () const
const BoundingBox &	GetWorldBoundingBox ()
unsigned char	GetDrawableFlags () const
	Return drawable flags.
float	GetDrawDistance () const
float	GetShadowDistance () const
float	GetLodBias () const
unsigned	GetViewMask () const
unsigned	GetLightMask () const
unsigned	GetShadowMask () const
unsigned	GetZoneMask () const
unsigned	GetMaxLights () const
bool	GetCastShadows () const
bool	IsOccluder () const
bool	IsOccludee () const
bool	IsInView () const
bool	IsInView (Camera *camera) const
	Return whether is in view of a specific camera this frame. Pass in a null camera to allow any camera, including shadow map cameras.
const Vector< SourceBatch > &	GetBatches () const
	Return draw call source data.
void	SetZone (Zone *zone, bool temporary=false)
	Set new zone. Zone assignment may optionally be temporary, meaning it needs to be re-evaluated on the next frame.
void	SetSortValue (float value)
	Set sorting value.
void	SetMinMaxZ (float minZ, float maxZ)
	Set view-space depth bounds.
void	MarkInView (const FrameInfo &frame)
	Mark in view. Also clear the light list.
void	MarkInView (unsigned frameNumber)
	Mark in view without specifying a camera. Used for shadow casters.
void	LimitLights ()
	Sort and limit per-pixel lights to maximum allowed. Convert extra lights into vertex lights.
void	LimitVertexLights (bool removeConvertedLights)
	Sort and limit per-vertex lights to maximum allowed.
void	SetBasePass (unsigned batchIndex)
	Set base pass flag for a batch.
Octant *	GetOctant () const
	Return octree octant.
Zone *	GetZone () const
bool	IsZoneDirty () const
	Return whether current zone is inconclusive or dirty due to the drawable moving.
float	GetDistance () const
	Return distance from camera.
float	GetLodDistance () const
	Return LOD scaled distance from camera.
float	GetSortValue () const
	Return sorting value.
bool	IsInView (const FrameInfo &frame, bool anyCamera=false) const
	Return whether is in view on the current frame. Called by View.
bool	HasBasePass (unsigned batchIndex) const
	Return whether has a base pass.
const PODVector< Light * > &	GetLights () const
	Return per-pixel lights.
const PODVector< Light * > &	GetVertexLights () const
	Return per-vertex lights.
Light *	GetFirstLight () const
	Return the first added per-pixel light.
float	GetMinZ () const
	Return the minimum view-space depth.
float	GetMaxZ () const
	Return the maximum view-space depth.
void	AddLight (Light *light)
	Add a per-pixel light affecting the object this frame.
void	AddVertexLight (Light *light)
	Add a per-vertex light affecting the object this frame.
Public Member Functions inherited from Dviglo::Component
	Component (Context *context)
	Construct.
	~Component () override
	Destruct.
bool	Save (Serializer &dest) const override
	Save as binary data. Return true if successful.
bool	SaveXML (XMLElement &dest) const override
	Save as XML data. Return true if successful.
bool	SaveJSON (JSONValue &dest) const override
	Save as JSON data. Return true if successful.
void	MarkNetworkUpdate () override
	Mark for attribute check on the next network update.
virtual void	GetDependencyNodes (PODVector< Node * > &dest)
	Return the depended on nodes to order network updates.
void	SetEnabled (bool enable)
void	Remove ()
	Remove from the scene node. If no other shared pointer references exist, causes immediate deletion.
unsigned	GetID () const
bool	IsReplicated () const
Node *	GetNode () const
Scene *	GetScene () const
	Return the scene the node belongs to.
bool	IsEnabled () const
bool	IsEnabledEffective () const
Component *	GetComponent (StringHash type) const
	Return component in the same scene node by type. If there are several, returns the first.
void	GetComponents (PODVector< Component * > &dest, StringHash type) const
	Return components in the same scene node by type.
template<class T >
T *	GetComponent () const
	Template version of returning a component in the same scene node by type.
template<class T >
void	GetComponents (PODVector< T * > &dest) const
	Template version of returning components in the same scene node by type.
void	AddReplicationState (ComponentReplicationState *state)
	Add a replication state that is tracking this component.
void	PrepareNetworkUpdate ()
	Prepare network update by comparing attributes and marking replication states dirty as necessary.
void	CleanupConnection (Connection *connection)
Public Member Functions inherited from Dviglo::Animatable
	Animatable (Context *context)
	Construct.
	~Animatable () override
	Destruct.
bool	LoadXML (const XMLElement &source) override
	Load from XML data. Return true if successful.
bool	LoadJSON (const JSONValue &source) override
	Load from JSON data. Return true if successful.
void	SetAnimationEnabled (bool enable)
void	SetAnimationTime (float time)
	Set time position of all attribute animations or an object animation manually. Automatic update should be disabled in this case.
void	SetObjectAnimation (ObjectAnimation *objectAnimation)
void	SetAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode=WM_LOOP, float speed=1.0f)
	Set attribute animation.
void	SetAttributeAnimationWrapMode (const String &name, WrapMode wrapMode)
	Set attribute animation wrap mode.
void	SetAttributeAnimationSpeed (const String &name, float speed)
	Set attribute animation speed.
void	SetAttributeAnimationTime (const String &name, float time)
	Set attribute animation time position manually. Automatic update should be disabled in this case.
void	RemoveObjectAnimation ()
	Remove object animation. Same as calling SetObjectAnimation with a null pointer.
void	RemoveAttributeAnimation (const String &name)
	Remove attribute animation. Same as calling SetAttributeAnimation with a null pointer.
bool	GetAnimationEnabled () const
ObjectAnimation *	GetObjectAnimation () const
ValueAnimation *	GetAttributeAnimation (const String &name) const
	Return attribute animation.
WrapMode	GetAttributeAnimationWrapMode (const String &name) const
	Return attribute animation wrap mode.
float	GetAttributeAnimationSpeed (const String &name) const
	Return attribute animation speed.
float	GetAttributeAnimationTime (const String &name) const
	Return attribute animation time position.
void	SetObjectAnimationAttr (const ResourceRef &value)
	Set object animation attribute.
ResourceRef	GetObjectAnimationAttr () const
	Return object animation attribute.
Public Member Functions inherited from Dviglo::Serializable
	Serializable (Context *context)
	Construct.
	~Serializable () override
	Destruct.
virtual void	OnSetAttribute (const AttributeInfo &attr, const Variant &src)
	Handle attribute write access. Default implementation writes to the variable at offset, or invokes the set accessor.
virtual void	OnGetAttribute (const AttributeInfo &attr, Variant &dest) const
	Handle attribute read access. Default implementation reads the variable at offset, or invokes the get accessor.
virtual const Vector< AttributeInfo > *	GetAttributes () const
	Return attribute descriptions, or null if none defined.
virtual const Vector< AttributeInfo > *	GetNetworkAttributes () const
	Return network replication attribute descriptions, or null if none defined.
virtual bool	SaveDefaultAttributes () const
	Return whether should save default-valued attributes into XML. Default false.
bool	SetAttribute (unsigned index, const Variant &value)
bool	SetAttribute (const String &name, const Variant &value)
	Set attribute by name. Return true if successfully set.
void	SetInstanceDefault (bool enable)
	Set instance-level default flag.
void	ResetToDefault ()
	Reset all editable attributes to their default values.
void	RemoveInstanceDefault ()
	Remove instance's default values if they are set previously.
void	SetTemporary (bool enable)
void	SetInterceptNetworkUpdate (const String &attributeName, bool enable)
	Enable interception of an attribute from network updates. Intercepted attributes are sent as events instead of applying directly. This can be used to implement client side prediction.
void	AllocateNetworkState ()
	Allocate network attribute state.
void	WriteInitialDeltaUpdate (Serializer &dest, unsigned char timeStamp)
	Write initial delta network update.
void	WriteDeltaUpdate (Serializer &dest, const DirtyBits &attributeBits, unsigned char timeStamp)
	Write a delta network update according to dirty attribute bits.
void	WriteLatestDataUpdate (Serializer &dest, unsigned char timeStamp)
	Write a latest data network update.
bool	ReadDeltaUpdate (Deserializer &source)
	Read and apply a network delta update. Return true if attributes were changed.
bool	ReadLatestDataUpdate (Deserializer &source)
	Read and apply a network latest data update. Return true if attributes were changed.
Variant	GetAttribute (unsigned index) const
Variant	GetAttribute (const String &name) const
	Return attribute value by name. Return empty if not found.
Variant	GetAttributeDefault (unsigned index) const
Variant	GetAttributeDefault (const String &name) const
	Return attribute default value by name. Return empty if not found.
unsigned	GetNumAttributes () const
unsigned	GetNumNetworkAttributes () const
	Return number of network replication attributes.
bool	IsTemporary () const
bool	GetInterceptNetworkUpdate (const String &attributeName) const
	Return whether an attribute's network updates are being intercepted.
NetworkState *	GetNetworkState () const
	Return the network attribute state, if allocated.
Public Member Functions inherited from Dviglo::Object
	Object (Context *context)
	Construct.
	~Object () override
	Destruct. Clean up self from event sender & receiver structures.
virtual StringHash	GetType () const =0
virtual const String &	GetTypeName () const =0
virtual const TypeInfo *	GetTypeInfo () const =0
	Return type info.
virtual void	OnEvent (Object *sender, StringHash eventType, VariantMap &eventData)
	Handle event.
bool	IsInstanceOf (StringHash type) const
	Check current instance is type of specified type.
bool	IsInstanceOf (const TypeInfo *typeInfo) const
	Check current instance is type of specified type.
template<typename T >
bool	IsInstanceOf () const
	Check current instance is type of specified class.
template<typename T >
T *	Cast ()
	Cast the object to specified most derived class.
template<typename T >
const T *	Cast () const
	Cast the object to specified most derived class.
void	SubscribeToEvent (StringHash eventType, EventHandler *handler)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, EventHandler *handler)
	Subscribe to a specific sender's event.
void	SubscribeToEvent (StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to a specific sender's event.
void	UnsubscribeFromEvent (StringHash eventType)
	Unsubscribe from an event.
void	UnsubscribeFromEvent (Object *sender, StringHash eventType)
	Unsubscribe from a specific sender's event.
void	UnsubscribeFromEvents (Object *sender)
	Unsubscribe from a specific sender's events.
void	UnsubscribeFromAllEvents ()
	Unsubscribe from all events.
void	UnsubscribeFromAllEventsExcept (const PODVector< StringHash > &exceptions, bool onlyUserData)
	Unsubscribe from all events except those listed, and optionally only those with userdata (script registered events).
void	SendEvent (StringHash eventType)
	Send event to all subscribers.
void	SendEvent (StringHash eventType, VariantMap &eventData)
	Send event with parameters to all subscribers.
VariantMap &	GetEventDataMap () const
	Return a preallocated map for event data. Used for optimization to avoid constant re-allocation of event data maps.
template<typename... Args>
void	SendEvent (StringHash eventType, Args... args)
	Send event with variadic parameter pairs to all subscribers. The parameter pairs is a list of paramID and paramValue separated by comma, one pair after another.
Context *	GetContext () const
	Return execution context.
const Variant &	GetGlobalVar (StringHash key) const
const VariantMap &	GetGlobalVars () const
void	SetGlobalVar (StringHash key, const Variant &value)
Object *	GetSubsystem (StringHash type) const
	Return subsystem by type.
Object *	GetEventSender () const
	Return active event sender. Null outside event handling.
EventHandler *	GetEventHandler () const
	Return active event handler. Null outside event handling.
bool	HasSubscribedToEvent (StringHash eventType) const
	Return whether has subscribed to an event without specific sender.
bool	HasSubscribedToEvent (Object *sender, StringHash eventType) const
	Return whether has subscribed to a specific sender's event.
bool	HasEventHandlers () const
	Return whether has subscribed to any event.
template<class T >
T *	GetSubsystem () const
	Template version of returning a subsystem.
const String &	GetCategory () const
void	SetBlockEvents (bool block)
	Block object from sending and receiving events.
bool	GetBlockEvents () const
	Return sending and receiving events blocking status.
Public Member Functions inherited from Dviglo::RefCounted
	RefCounted ()
	Construct. Allocate the reference count structure and set an initial self weak reference.
virtual	~RefCounted ()
	Destruct. Mark as expired and also delete the reference count structure if no outside weak references exist.
	RefCounted (const RefCounted &rhs)=delete
	Prevent copy construction.
RefCounted &	operator= (const RefCounted &rhs)=delete
	Prevent assignment.
void	AddRef ()
void	ReleaseRef ()
int	Refs () const
int	WeakRefs () const
RefCount *	RefCountPtr ()
	Return pointer to the reference count structure.

Static Public Member Functions
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::StaticModel
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Drawable
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Animatable
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Object
static const TypeInfo *	GetTypeInfoStatic ()
	Return type info static.

Protected Member Functions
void	OnNodeSet (Node *node) override
	Handle node being assigned.
void	OnMarkedDirty (Node *node) override
	Handle node transform being dirtied.
void	OnWorldBoundingBoxUpdate () override
	Recalculate the world-space bounding box. More...
Protected Member Functions inherited from Dviglo::StaticModel
void	OnWorldBoundingBoxUpdate () override
	Recalculate the world-space bounding box.
void	SetBoundingBox (const BoundingBox &box)
	Set local-space bounding box.
void	SetNumGeometries (unsigned num)
	Set number of geometries.
void	ResetLodLevels ()
	Reset LOD levels.
void	CalculateLodLevels ()
	Choose LOD levels based on distance.
Protected Member Functions inherited from Dviglo::Drawable
void	OnNodeSet (Node *node) override
	Handle node being assigned.
void	OnSceneSet (Scene *scene) override
	Handle scene being assigned.
void	OnMarkedDirty (Node *node) override
	Handle node transform being dirtied.
virtual void	OnRemoveFromOctree ()
	Handle removal from octree.
void	AddToOctree ()
	Add to octree.
void	RemoveFromOctree ()
	Remove from octree.
void	SetOctant (Octant *octant)
	Move into another octree octant.
Protected Member Functions inherited from Dviglo::Component
void	OnAttributeAnimationAdded () override
	Handle attribute animation added.
void	OnAttributeAnimationRemoved () override
	Handle attribute animation removed.
virtual void	OnNodeSetEnabled (Node *node)
	Handle scene node enabled status changing.
void	SetID (unsigned id)
void	SetNode (Node *node)
	Set scene node. Called by Node when creating the component.
void	HandleAttributeAnimationUpdate (StringHash eventType, VariantMap &eventData)
	Handle scene attribute animation update event.
Component *	GetFixedUpdateSource ()
	Return a component from the scene root that sends out fixed update events (either PhysicsWorld or PhysicsWorld2D). Return null if neither exists.
void	DoAutoRemove (AutoRemoveMode mode)
	Perform autoremove. Called by subclasses. Caller should keep a weak pointer to itself to check whether was actually removed, and return immediately without further member operations in that case.
Protected Member Functions inherited from Dviglo::Animatable
virtual Animatable *	FindAttributeAnimationTarget (const String &name, String &outName)
	Find target of an attribute animation from object hierarchy by name.
void	SetObjectAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode, float speed)
	Set object attribute animation internal.
void	OnObjectAnimationAdded (ObjectAnimation *objectAnimation)
	Handle object animation added.
void	OnObjectAnimationRemoved (ObjectAnimation *objectAnimation)
	Handle object animation removed.
void	UpdateAttributeAnimations (float timeStep)
	Update attribute animations.
bool	IsAnimatedNetworkAttribute (const AttributeInfo &attrInfo) const
	Is animated network attribute.
AttributeAnimationInfo *	GetAttributeAnimationInfo (const String &name) const
	Return attribute animation info.
void	HandleAttributeAnimationAdded (StringHash eventType, VariantMap &eventData)
	Handle attribute animation added.
void	HandleAttributeAnimationRemoved (StringHash eventType, VariantMap &eventData)
	Handle attribute animation removed.

Private Member Functions
	URHO3D_OBJECT (AnimatedModel, StaticModel)
void	AssignBoneNodes ()
	Assign skeleton and animation bone node references as a postprocess. Called by ApplyAttributes.
void	FinalizeBoneBoundingBoxes ()
	Finalize master model bone bounding boxes by merging from matching non-master bones.. Performed whenever any of the AnimatedModels in the same node changes its model.
void	RemoveRootBone ()
	Remove (old) skeleton root bone.
void	MarkAnimationDirty ()
	Mark animation and skinning to require an update.
void	MarkAnimationOrderDirty ()
	Mark animation and skinning to require a forced update (blending order changed).
void	MarkMorphsDirty ()
	Mark morphs to require an update.
void	SetSkeleton (const Skeleton &skeleton, bool createBones)
	Set skeleton.
void	SetGeometryBoneMappings ()
	Set mapping of subgeometry bone indices.
void	CloneGeometries ()
	Clone geometries for vertex morphing.
void	CopyMorphVertices (void *destVertexData, void *srcVertexData, unsigned vertexCount, VertexBuffer *destBuffer, VertexBuffer *srcBuffer)
	Copy morph vertices.
void	UpdateAnimation (const FrameInfo &frame)
	Recalculate animations. Called from Update().
void	UpdateSkinning ()
	Recalculate skinning.
void	UpdateMorphs ()
	Reapply all vertex morphs.
void	ApplyMorph (VertexBuffer *buffer, void *destVertexData, unsigned morphRangeStart, const VertexBufferMorph &morph, float weight)
	Apply a vertex morph.
void	HandleModelReloadFinished (StringHash eventType, VariantMap &eventData)
	Handle model reload finished.

Private Attributes
Skeleton	skeleton_
	Skeleton.
Vector< SharedPtr< VertexBuffer > >	morphVertexBuffers_
	Morph vertex buffers.
Vector< ModelMorph >	morphs_
	Vertex morphs.
Vector< SharedPtr< AnimationState > >	animationStates_
	Animation states.
PODVector< Matrix3x4 >	skinMatrices_
	Skinning matrices.
Vector< PODVector< unsigned > >	geometryBoneMappings_
	Mapping of subgeometry bone indices, used if more bones than skinning shader can manage.
Vector< PODVector< Matrix3x4 > >	geometrySkinMatrices_
	Subgeometry skinning matrices, used if more bones than skinning shader can manage.
Vector< PODVector< Matrix3x4 * > >	geometrySkinMatrixPtrs_
	Subgeometry skinning matrix pointers, if more bones than skinning shader can manage.
BoundingBox	boneBoundingBox_
	Bounding box calculated from bones.
VectorBuffer	attrBuffer_
	Attribute buffer.
unsigned	animationLodFrameNumber_
	The frame number animation LOD distance was last calculated on.
VertexMaskFlags	morphElementMask_
	Morph vertex element mask.
float	animationLodBias_
	Animation LOD bias.
float	animationLodTimer_
	Animation LOD timer.
float	animationLodDistance_
	Animation LOD distance, the minimum of all LOD view distances last frame.
bool	updateInvisible_
	Update animation when invisible flag.
bool	animationDirty_
	Animation dirty flag.
bool	animationOrderDirty_
	Animation order dirty flag.
bool	morphsDirty_
	Vertex morphs dirty flag.
bool	skinningDirty_
	Skinning dirty flag.
bool	boneBoundingBoxDirty_
	Bone bounding box dirty flag.
bool	isMaster_
	Master model flag.
bool	loading_
	Loading flag. During loading bone nodes are not created, as they will be serialized as child nodes.
bool	assignBonesPending_
	Bone nodes assignment pending flag.
bool	forceAnimationUpdate_
	Force animation update after becoming visible flag.

Friends
class	AnimationState

Additional Inherited Members
Protected Attributes inherited from Dviglo::StaticModel
PODVector< StaticModelGeometryData >	geometryData_
	Extra per-geometry data.
Vector< Vector< SharedPtr< Geometry > > >	geometries_
	All geometries.
SharedPtr< Model >	model_
	Model.
unsigned	occlusionLodLevel_
	Occlusion LOD level.
ResourceRefList	materialsAttr_
	Material list attribute.
Protected Attributes inherited from Dviglo::Drawable
BoundingBox	worldBoundingBox_
	World-space bounding box.
BoundingBox	boundingBox_
	Local-space bounding box.
Vector< SourceBatch >	batches_
	Draw call source data.
unsigned char	drawableFlags_
	Drawable flags.
bool	worldBoundingBoxDirty_
	Bounding box dirty flag.
bool	castShadows_
	Shadowcaster flag.
bool	occluder_
	Occluder flag.
bool	occludee_
	Occludee flag.
bool	updateQueued_
	Octree update queued flag.
bool	zoneDirty_
	Zone inconclusive or dirtied flag.
Octant *	octant_
	Octree octant.
Zone *	zone_
	Current zone.
unsigned	viewMask_
	View mask.
unsigned	lightMask_
	Light mask.
unsigned	shadowMask_
	Shadow mask.
unsigned	zoneMask_
	Zone mask.
unsigned	viewFrameNumber_
	Last visible frame number.
float	distance_
	Current distance to camera.
float	lodDistance_
	LOD scaled distance.
float	drawDistance_
	Draw distance.
float	shadowDistance_
	Shadow distance.
float	sortValue_
	Current sort value.
float	minZ_
	Current minimum view space depth.
float	maxZ_
	Current maximum view space depth.
float	lodBias_
	LOD bias.
unsigned	basePassFlags_
	Base pass flags, bit per batch.
unsigned	maxLights_
	Maximum per-pixel lights.
PODVector< Camera * >	viewCameras_
	List of cameras from which is seen on the current frame.
Light *	firstLight_
	First per-pixel light added this frame.
PODVector< Light * >	lights_
	Per-pixel lights affecting this drawable.
PODVector< Light * >	vertexLights_
	Per-vertex lights affecting this drawable.
Protected Attributes inherited from Dviglo::Component
Node *	node_
	Scene node.
unsigned	id_
	Unique ID within the scene.
bool	networkUpdate_
	Network update queued flag.
bool	enabled_
	Enabled flag.
Protected Attributes inherited from Dviglo::Animatable
bool	animationEnabled_
	Animation enabled.
SharedPtr< ObjectAnimation >	objectAnimation_
	Animation.
HashSet< const AttributeInfo * >	animatedNetworkAttributes_
	Animated network attribute set.
HashMap< String, SharedPtr< AttributeAnimationInfo > >	attributeAnimationInfos_
	Attribute animation infos.
Protected Attributes inherited from Dviglo::Serializable
UniquePtr< NetworkState >	networkState_
	Network attribute state.
Protected Attributes inherited from Dviglo::Object
Context *	context_
	Execution context.

Detailed Description

Animated model component.

Member Function Documentation

GetAnimationLodBias()

float Dviglo::AnimatedModel::GetAnimationLodBias ( ) const

inline

Return animation LOD bias.

GetAnimationState()

AnimationState * Dviglo::AnimatedModel::GetAnimationState

(

const String &

animationName

)

const

Return animation state by animation name.

GetMorphWeight()

float Dviglo::AnimatedModel::GetMorphWeight

(

const String &

name

)

const

Return vertex morph weight by name.

GetNumAnimationStates()

unsigned Dviglo::AnimatedModel::GetNumAnimationStates ( ) const

inline

Return number of animation states.

GetNumMorphs()

unsigned Dviglo::AnimatedModel::GetNumMorphs ( ) const

inline

Return number of vertex morphs.

GetSkeleton()

Skeleton& Dviglo::AnimatedModel::GetSkeleton ( )

inline

Return skeleton.

GetUpdateInvisible()

bool Dviglo::AnimatedModel::GetUpdateInvisible ( ) const

inline

Return whether to update animation when not visible.

OnWorldBoundingBoxUpdate()

void Dviglo::AnimatedModel::OnWorldBoundingBoxUpdate ( )

overrideprotectedvirtual

Recalculate the world-space bounding box.

Todo:

If it's a skinned attachment that does not cover the whole body, it will have unnecessarily large bounds

Implements Dviglo::Drawable.

RegisterObject()

void Dviglo::AnimatedModel::RegisterObject ( Context *  context )

static

Register object factory. Drawable must be registered first.

SetAnimationLodBias()

void Dviglo::AnimatedModel::SetAnimationLodBias

(

float

bias

)

Set animation LOD bias.

SetMorphWeight()

void Dviglo::AnimatedModel::SetMorphWeight	(	const String &	name,
		float	weight
	)

Set vertex morph weight by name.

SetUpdateInvisible()

void Dviglo::AnimatedModel::SetUpdateInvisible

(

bool

enable

)

Set whether to update animation and the bounding box when not visible. Recommended to enable for physically controlled models like ragdolls.

UpdateBoneBoundingBox()

void Dviglo::AnimatedModel::UpdateBoneBoundingBox

(

)

Recalculate the bone bounding box. Normally called internally, but can also be manually called if up-to-date information before rendering is necessary.

Todo:

The sphere radius should be multiplied with bone scale

---

The documentation for this class was generated from the following files:

• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Graphics/AnimatedModel.h
• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Graphics/AnimatedModel.cpp
