Crowd agent component, requires a CrowdManager component in the scene. When not set explicitly, agent's radius and height are defaulted to navigation mesh's agent radius and height, respectively. More...

#include </home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Navigation/CrowdAgent.h>

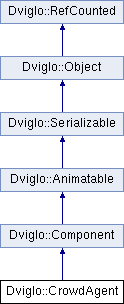

Inheritance diagram for Dviglo::CrowdAgent:

Public Member Functions
	CrowdAgent (Context *context)
	Construct.

	~CrowdAgent () override
	Destruct.

void	ApplyAttributes () override
	Apply attribute changes that can not be applied immediately. Called after scene load or a network update.

void	OnSetEnabled () override
	Handle enabled/disabled state change.

void	DrawDebugGeometry (bool depthTest)
	Draw debug geometry.

void	DrawDebugGeometry (DebugRenderer *debug, bool depthTest) override
	Draw debug feelers.

void	SetTargetPosition (const Vector3 &position)

void	SetTargetVelocity (const Vector3 &velocity)

void	ResetTarget ()
	Reset any target request for the specified agent. Note that the agent will continue to move into the current direction; set a zero target velocity to actually stop.

void	SetUpdateNodePosition (bool unodepos)

void	SetMaxAccel (float maxAccel)

void	SetMaxSpeed (float maxSpeed)

void	SetRadius (float radius)

void	SetHeight (float height)

void	SetQueryFilterType (unsigned queryFilterType)

void	SetObstacleAvoidanceType (unsigned obstacleAvoidanceType)

void	SetNavigationQuality (NavigationQuality val)

void	SetNavigationPushiness (NavigationPushiness val)

Vector3	GetPosition () const

Vector3	GetDesiredVelocity () const

Vector3	GetActualVelocity () const

const Vector3 &	GetTargetPosition () const

const Vector3 &	GetTargetVelocity () const

CrowdAgentRequestedTarget	GetRequestedTargetType () const

CrowdAgentState	GetAgentState () const

CrowdAgentTargetState	GetTargetState () const

bool	GetUpdateNodePosition () const

int	GetAgentCrowdId () const
	Return the agent id.

float	GetMaxAccel () const

float	GetMaxSpeed () const

float	GetRadius () const

float	GetHeight () const

unsigned	GetQueryFilterType () const

unsigned	GetObstacleAvoidanceType () const

NavigationQuality	GetNavigationQuality () const

NavigationPushiness	GetNavigationPushiness () const

bool	HasRequestedTarget () const

bool	HasArrived () const

bool	IsInCrowd () const

Public Member Functions inherited from Dviglo::Component
	Component (Context *context)
	Construct.

	~Component () override
	Destruct.

bool	Save (Serializer &dest) const override
	Save as binary data. Return true if successful.

bool	SaveXML (XMLElement &dest) const override
	Save as XML data. Return true if successful.

bool	SaveJSON (JSONValue &dest) const override
	Save as JSON data. Return true if successful.

void	MarkNetworkUpdate () override
	Mark for attribute check on the next network update.

virtual void	GetDependencyNodes (PODVector< Node * > &dest)
	Return the depended on nodes to order network updates.

void	SetEnabled (bool enable)

void	Remove ()
	Remove from the scene node. If no other shared pointer references exist, causes immediate deletion.

unsigned	GetID () const

bool	IsReplicated () const

Node *	GetNode () const

Scene *	GetScene () const
	Return the scene the node belongs to.

bool	IsEnabled () const

bool	IsEnabledEffective () const

Component *	GetComponent (StringHash type) const
	Return component in the same scene node by type. If there are several, returns the first.

void	GetComponents (PODVector< Component * > &dest, StringHash type) const
	Return components in the same scene node by type.

template<class T >
T *	GetComponent () const
	Template version of returning a component in the same scene node by type.

template<class T >
void	GetComponents (PODVector< T * > &dest) const
	Template version of returning components in the same scene node by type.

void	AddReplicationState (ComponentReplicationState *state)
	Add a replication state that is tracking this component.

void	PrepareNetworkUpdate ()
	Prepare network update by comparing attributes and marking replication states dirty as necessary.

void	CleanupConnection (Connection *connection)

Public Member Functions inherited from Dviglo::Animatable
	Animatable (Context *context)
	Construct.

	~Animatable () override
	Destruct.

bool	LoadXML (const XMLElement &source) override
	Load from XML data. Return true if successful.

bool	LoadJSON (const JSONValue &source) override
	Load from JSON data. Return true if successful.

void	SetAnimationEnabled (bool enable)

void	SetAnimationTime (float time)
	Set time position of all attribute animations or an object animation manually. Automatic update should be disabled in this case.

void	SetObjectAnimation (ObjectAnimation *objectAnimation)

void	SetAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode=WM_LOOP, float speed=1.0f)
	Set attribute animation.

void	SetAttributeAnimationWrapMode (const String &name, WrapMode wrapMode)
	Set attribute animation wrap mode.

void	SetAttributeAnimationSpeed (const String &name, float speed)
	Set attribute animation speed.

void	SetAttributeAnimationTime (const String &name, float time)
	Set attribute animation time position manually. Automatic update should be disabled in this case.

void	RemoveObjectAnimation ()
	Remove object animation. Same as calling SetObjectAnimation with a null pointer.

void	RemoveAttributeAnimation (const String &name)
	Remove attribute animation. Same as calling SetAttributeAnimation with a null pointer.

bool	GetAnimationEnabled () const

ObjectAnimation *	GetObjectAnimation () const

ValueAnimation *	GetAttributeAnimation (const String &name) const
	Return attribute animation.

WrapMode	GetAttributeAnimationWrapMode (const String &name) const
	Return attribute animation wrap mode.

float	GetAttributeAnimationSpeed (const String &name) const
	Return attribute animation speed.

float	GetAttributeAnimationTime (const String &name) const
	Return attribute animation time position.

void	SetObjectAnimationAttr (const ResourceRef &value)
	Set object animation attribute.

ResourceRef	GetObjectAnimationAttr () const
	Return object animation attribute.

Public Member Functions inherited from Dviglo::Serializable
	Serializable (Context *context)
	Construct.

	~Serializable () override
	Destruct.

virtual void	OnSetAttribute (const AttributeInfo &attr, const Variant &src)
	Handle attribute write access. Default implementation writes to the variable at offset, or invokes the set accessor.

virtual void	OnGetAttribute (const AttributeInfo &attr, Variant &dest) const
	Handle attribute read access. Default implementation reads the variable at offset, or invokes the get accessor.

virtual const Vector< AttributeInfo > *	GetAttributes () const
	Return attribute descriptions, or null if none defined.

virtual const Vector< AttributeInfo > *	GetNetworkAttributes () const
	Return network replication attribute descriptions, or null if none defined.

virtual bool	Load (Deserializer &source)
	Load from binary data. Return true if successful.

virtual bool	SaveDefaultAttributes () const
	Return whether should save default-valued attributes into XML. Default false.

bool	SetAttribute (unsigned index, const Variant &value)

bool	SetAttribute (const String &name, const Variant &value)
	Set attribute by name. Return true if successfully set.

void	SetInstanceDefault (bool enable)
	Set instance-level default flag.

void	ResetToDefault ()
	Reset all editable attributes to their default values.

void	RemoveInstanceDefault ()
	Remove instance's default values if they are set previously.

void	SetTemporary (bool enable)

void	SetInterceptNetworkUpdate (const String &attributeName, bool enable)
	Enable interception of an attribute from network updates. Intercepted attributes are sent as events instead of applying directly. This can be used to implement client side prediction.

void	AllocateNetworkState ()
	Allocate network attribute state.

void	WriteInitialDeltaUpdate (Serializer &dest, unsigned char timeStamp)
	Write initial delta network update.

void	WriteDeltaUpdate (Serializer &dest, const DirtyBits &attributeBits, unsigned char timeStamp)
	Write a delta network update according to dirty attribute bits.

void	WriteLatestDataUpdate (Serializer &dest, unsigned char timeStamp)
	Write a latest data network update.

bool	ReadDeltaUpdate (Deserializer &source)
	Read and apply a network delta update. Return true if attributes were changed.

bool	ReadLatestDataUpdate (Deserializer &source)
	Read and apply a network latest data update. Return true if attributes were changed.

Variant	GetAttribute (unsigned index) const

Variant	GetAttribute (const String &name) const
	Return attribute value by name. Return empty if not found.

Variant	GetAttributeDefault (unsigned index) const

Variant	GetAttributeDefault (const String &name) const
	Return attribute default value by name. Return empty if not found.

unsigned	GetNumAttributes () const

unsigned	GetNumNetworkAttributes () const
	Return number of network replication attributes.

bool	IsTemporary () const

bool	GetInterceptNetworkUpdate (const String &attributeName) const
	Return whether an attribute's network updates are being intercepted.

NetworkState *	GetNetworkState () const
	Return the network attribute state, if allocated.

Public Member Functions inherited from Dviglo::Object
	Object (Context *context)
	Construct.

	~Object () override
	Destruct. Clean up self from event sender & receiver structures.

virtual StringHash	GetType () const =0

virtual const String &	GetTypeName () const =0

virtual const TypeInfo *	GetTypeInfo () const =0
	Return type info.

virtual void	OnEvent (Object *sender, StringHash eventType, VariantMap &eventData)
	Handle event.

bool	IsInstanceOf (StringHash type) const
	Check current instance is type of specified type.

bool	IsInstanceOf (const TypeInfo *typeInfo) const
	Check current instance is type of specified type.

template<typename T >
bool	IsInstanceOf () const
	Check current instance is type of specified class.

template<typename T >
T *	Cast ()
	Cast the object to specified most derived class.

template<typename T >
const T *	Cast () const
	Cast the object to specified most derived class.

void	SubscribeToEvent (StringHash eventType, EventHandler *handler)
	Subscribe to an event that can be sent by any sender.

void	SubscribeToEvent (Object sender, StringHash eventType, EventHandler handler)
	Subscribe to a specific sender's event.

void	SubscribeToEvent (StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to an event that can be sent by any sender.

void	SubscribeToEvent (Object sender, StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void userData=nullptr)
	Subscribe to a specific sender's event.

void	UnsubscribeFromEvent (StringHash eventType)
	Unsubscribe from an event.

void	UnsubscribeFromEvent (Object *sender, StringHash eventType)
	Unsubscribe from a specific sender's event.

void	UnsubscribeFromEvents (Object *sender)
	Unsubscribe from a specific sender's events.

void	UnsubscribeFromAllEvents ()
	Unsubscribe from all events.

void	UnsubscribeFromAllEventsExcept (const PODVector< StringHash > &exceptions, bool onlyUserData)
	Unsubscribe from all events except those listed, and optionally only those with userdata (script registered events).

void	SendEvent (StringHash eventType)
	Send event to all subscribers.

void	SendEvent (StringHash eventType, VariantMap &eventData)
	Send event with parameters to all subscribers.

VariantMap &	GetEventDataMap () const
	Return a preallocated map for event data. Used for optimization to avoid constant re-allocation of event data maps.

template<typename... Args>
void	SendEvent (StringHash eventType, Args... args)
	Send event with variadic parameter pairs to all subscribers. The parameter pairs is a list of paramID and paramValue separated by comma, one pair after another.

Context *	GetContext () const
	Return execution context.

const Variant &	GetGlobalVar (StringHash key) const

const VariantMap &	GetGlobalVars () const

void	SetGlobalVar (StringHash key, const Variant &value)

Object *	GetSubsystem (StringHash type) const
	Return subsystem by type.

Object *	GetEventSender () const
	Return active event sender. Null outside event handling.

EventHandler *	GetEventHandler () const
	Return active event handler. Null outside event handling.

bool	HasSubscribedToEvent (StringHash eventType) const
	Return whether has subscribed to an event without specific sender.

bool	HasSubscribedToEvent (Object *sender, StringHash eventType) const
	Return whether has subscribed to a specific sender's event.

bool	HasEventHandlers () const
	Return whether has subscribed to any event.

template<class T >
T *	GetSubsystem () const
	Template version of returning a subsystem.

const String &	GetCategory () const

void	SetBlockEvents (bool block)
	Block object from sending and receiving events.

bool	GetBlockEvents () const
	Return sending and receiving events blocking status.

Public Member Functions inherited from Dviglo::RefCounted
	RefCounted ()
	Construct. Allocate the reference count structure and set an initial self weak reference.

virtual	~RefCounted ()
	Destruct. Mark as expired and also delete the reference count structure if no outside weak references exist.

	RefCounted (const RefCounted &rhs)=delete
	Prevent copy construction.

RefCounted &	operator= (const RefCounted &rhs)=delete
	Prevent assignment.

void	AddRef ()

void	ReleaseRef ()

int	Refs () const

int	WeakRefs () const

RefCount *	RefCountPtr ()
	Return pointer to the reference count structure.

Static Public Member Functions
static void	RegisterObject (Context *context)

Static Public Member Functions inherited from Dviglo::Animatable
static void	RegisterObject (Context *context)

Static Public Member Functions inherited from Dviglo::Object
static const TypeInfo *	GetTypeInfoStatic ()
	Return type info static.

Protected Member Functions
virtual void	OnCrowdUpdate (dtCrowdAgent *ag, float dt)
	Handle crowd agent being updated. It is called by CrowdManager::Update() via callback.

void	OnNodeSet (Node *node) override
	Handle node being assigned.

void	OnSceneSet (Scene *scene) override
	Handle node being assigned.

void	OnMarkedDirty (Node *node) override

const dtCrowdAgent *	GetDetourCrowdAgent () const
	Get internal Detour crowd agent.

void	HandleNavigationTileAdded (StringHash eventType, VariantMap &eventData)
	Handle navigation mesh tile added.

Protected Member Functions inherited from Dviglo::Component
void	OnAttributeAnimationAdded () override
	Handle attribute animation added.

void	OnAttributeAnimationRemoved () override
	Handle attribute animation removed.

virtual void	OnNodeSetEnabled (Node *node)
	Handle scene node enabled status changing.

void	SetID (unsigned id)

void	SetNode (Node *node)
	Set scene node. Called by Node when creating the component.

void	HandleAttributeAnimationUpdate (StringHash eventType, VariantMap &eventData)
	Handle scene attribute animation update event.

Component *	GetFixedUpdateSource ()
	Return a component from the scene root that sends out fixed update events (either PhysicsWorld or PhysicsWorld2D). Return null if neither exists.

void	DoAutoRemove (AutoRemoveMode mode)
	Perform autoremove. Called by subclasses. Caller should keep a weak pointer to itself to check whether was actually removed, and return immediately without further member operations in that case.

Protected Member Functions inherited from Dviglo::Animatable
virtual Animatable *	FindAttributeAnimationTarget (const String &name, String &outName)
	Find target of an attribute animation from object hierarchy by name.

void	SetObjectAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode, float speed)
	Set object attribute animation internal.

void	OnObjectAnimationAdded (ObjectAnimation *objectAnimation)
	Handle object animation added.

void	OnObjectAnimationRemoved (ObjectAnimation *objectAnimation)
	Handle object animation removed.

void	UpdateAttributeAnimations (float timeStep)
	Update attribute animations.

bool	IsAnimatedNetworkAttribute (const AttributeInfo &attrInfo) const
	Is animated network attribute.

AttributeAnimationInfo *	GetAttributeAnimationInfo (const String &name) const
	Return attribute animation info.

void	HandleAttributeAnimationAdded (StringHash eventType, VariantMap &eventData)
	Handle attribute animation added.

void	HandleAttributeAnimationRemoved (StringHash eventType, VariantMap &eventData)
	Handle attribute animation removed.

Private Member Functions
	URHO3D_OBJECT (CrowdAgent, Component)

void	UpdateParameters (unsigned scope=M_MAX_UNSIGNED)
	Update Detour crowd agent parameter.

int	AddAgentToCrowd (bool force=false)
	Add agent into crowd.

void	RemoveAgentFromCrowd ()
	Remove agent from crowd.

Private Attributes
WeakPtr< CrowdManager >	crowdManager_
	Crowd manager.

int	agentCrowdId_
	Crowd manager reference to this agent.

Vector3	targetPosition_
	Requested target position.

Vector3	targetVelocity_
	Requested target velocity.

CrowdAgentRequestedTarget	requestedTargetType_
	Requested target type.

bool	updateNodePosition_
	Flag indicating the node's position should be updated by Detour crowd manager.

float	maxAccel_
	Agent's max acceleration.

float	maxSpeed_
	Agent's max Velocity.

float	radius_
	Agent's radius, if 0 the navigation mesh's setting will be used.

float	height_
	Agent's height, if 0 the navigation mesh's setting will be used.

unsigned	queryFilterType_
	Agent's query filter type, it is an index to the query filter buffer configured in Detour crowd manager.

unsigned	obstacleAvoidanceType_
	Agent's obstacle avoidance type, it is an index to the obstacle avoidance array configured in Detour crowd manager. It is ignored when agent's navigation quality is not set to "NAVIGATIONQUALITY_HIGH".

NavigationQuality	navQuality_
	Agent's navigation quality. The higher the setting, the higher the CPU usage during crowd simulation.

NavigationPushiness	navPushiness_
	Agent's navigation pushiness. The higher the setting, the stronger the agent pushes its colliding neighbours around.

Vector3	previousPosition_
	Agent's previous position used to check for position changes.

CrowdAgentTargetState	previousTargetState_
	Agent's previous target state used to check for state changes.

CrowdAgentState	previousAgentState_
	Agent's previous agent state used to check for state changes.

bool	ignoreTransformChanges_
	Internal flag to ignore transform changes because it came from us, used in OnCrowdAgentReposition().

Friends
class	CrowdManager

void	CrowdAgentUpdateCallback (dtCrowdAgent *ag, float dt)

Additional Inherited Members
Protected Attributes inherited from Dviglo::Component
Node *	node_
	Scene node.

unsigned	id_
	Unique ID within the scene.

bool	networkUpdate_
	Network update queued flag.

bool	enabled_
	Enabled flag.

Protected Attributes inherited from Dviglo::Animatable
bool	animationEnabled_
	Animation enabled.

SharedPtr< ObjectAnimation >	objectAnimation_
	Animation.

HashSet< const AttributeInfo * >	animatedNetworkAttributes_
	Animated network attribute set.

HashMap< String, SharedPtr< AttributeAnimationInfo > >	attributeAnimationInfos_
	Attribute animation infos.

Protected Attributes inherited from Dviglo::Serializable
UniquePtr< NetworkState >	networkState_
	Network attribute state.

Protected Attributes inherited from Dviglo::Object
Context *	context_
	Execution context.

Detailed Description

Crowd agent component, requires a CrowdManager component in the scene. When not set explicitly, agent's radius and height are defaulted to navigation mesh's agent radius and height, respectively.

Member Function Documentation

◆ GetActualVelocity()

Vector3 Dviglo::CrowdAgent::GetActualVelocity ( ) const

Return the agent's actual velocity.

◆ GetAgentState()

CrowdAgentState Dviglo::CrowdAgent::GetAgentState ( ) const

Return the agent's state.

◆ GetDesiredVelocity()

Vector3 Dviglo::CrowdAgent::GetDesiredVelocity ( ) const

Return the agent's desired velocity.

◆ GetHeight()

float Dviglo::CrowdAgent::GetHeight ( ) const

inline

Get the agent's height.

◆ GetMaxAccel()

float Dviglo::CrowdAgent::GetMaxAccel ( ) const

inline

Get the agent's max acceleration.

◆ GetMaxSpeed()

float Dviglo::CrowdAgent::GetMaxSpeed ( ) const

inline

Get the agent's max velocity.

◆ GetNavigationPushiness()

NavigationPushiness Dviglo::CrowdAgent::GetNavigationPushiness ( ) const

inline

Get the agent's navigation pushiness.

◆ GetNavigationQuality()

NavigationQuality Dviglo::CrowdAgent::GetNavigationQuality ( ) const

inline

Get the agent's navigation quality.

◆ GetObstacleAvoidanceType()

unsigned Dviglo::CrowdAgent::GetObstacleAvoidanceType ( ) const

inline

Get the agent's obstacle avoidance type.

◆ GetPosition()

Vector3 Dviglo::CrowdAgent::GetPosition ( ) const

Return the agent's position.

◆ GetQueryFilterType()

unsigned Dviglo::CrowdAgent::GetQueryFilterType ( ) const

inline

Get the agent's query filter type.

◆ GetRadius()

float Dviglo::CrowdAgent::GetRadius ( ) const

inline

Get the agent's radius.

◆ GetRequestedTargetType()

CrowdAgentRequestedTarget Dviglo::CrowdAgent::GetRequestedTargetType ( ) const

inline

Return the agent's requested target type, if any.

◆ GetTargetPosition()

const Vector3& Dviglo::CrowdAgent::GetTargetPosition ( ) const

inline

Return the agent's requested target position.

◆ GetTargetState()

CrowdAgentTargetState Dviglo::CrowdAgent::GetTargetState ( ) const

Return the agent's target state.

◆ GetTargetVelocity()

const Vector3& Dviglo::CrowdAgent::GetTargetVelocity ( ) const

inline

Return the agent's requested target velocity.

◆ GetUpdateNodePosition()

bool Dviglo::CrowdAgent::GetUpdateNodePosition ( ) const

inline

Return true when the node's position should be updated by the CrowdManager.

◆ HasArrived()

bool Dviglo::CrowdAgent::HasArrived ( ) const

Return true when the agent has arrived at its target.

◆ HasRequestedTarget()

bool Dviglo::CrowdAgent::HasRequestedTarget ( ) const

inline

Return true when the agent has a target.

◆ IsInCrowd()

bool Dviglo::CrowdAgent::IsInCrowd ( ) const

Return true when the agent is in crowd (being managed by a crowd manager).

◆ OnMarkedDirty()

void Dviglo::CrowdAgent::OnMarkedDirty ( Node * node )

overrideprotectedvirtual

Todo:: Handle node transform being dirtied.

Reimplemented from Dviglo::Component.

◆ RegisterObject()

void Dviglo::CrowdAgent::RegisterObject ( Context * context )

static

Register object factory.

◆ SetHeight()

void Dviglo::CrowdAgent::SetHeight ( float height )

Set the agent's height.

◆ SetMaxAccel()

void Dviglo::CrowdAgent::SetMaxAccel ( float maxAccel )

Set the agent's max acceleration.

◆ SetMaxSpeed()

void Dviglo::CrowdAgent::SetMaxSpeed ( float maxSpeed )

Set the agent's max velocity.

◆ SetNavigationPushiness()

void Dviglo::CrowdAgent::SetNavigationPushiness ( NavigationPushiness val )

Set the agent's navigation pushiness.

◆ SetNavigationQuality()

void Dviglo::CrowdAgent::SetNavigationQuality ( NavigationQuality val )

Set the agent's navigation quality.

◆ SetObstacleAvoidanceType()

void Dviglo::CrowdAgent::SetObstacleAvoidanceType ( unsigned obstacleAvoidanceType )

Set the agent's obstacle avoidance type.

◆ SetQueryFilterType()

void Dviglo::CrowdAgent::SetQueryFilterType ( unsigned queryFilterType )

Set the agent's query filter type.

◆ SetRadius()

void Dviglo::CrowdAgent::SetRadius ( float radius )

Set the agent's radius.

◆ SetTargetPosition()

void Dviglo::CrowdAgent::SetTargetPosition ( const Vector3 & position )

Submit a new target position request for this agent.

◆ SetTargetVelocity()

void Dviglo::CrowdAgent::SetTargetVelocity ( const Vector3 & velocity )

Submit a new target velocity request for this agent.

◆ SetUpdateNodePosition()

void Dviglo::CrowdAgent::SetUpdateNodePosition ( bool unodepos )

Update the node position. When set to false, the node position should be updated by other means (e.g. using Physics) in response to the E_CROWD_AGENT_REPOSITION event.

The documentation for this class was generated from the following files:

/home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Navigation/CrowdAgent.h
/home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Navigation/CrowdAgent.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ GetActualVelocity()

◆ GetAgentState()

◆ GetDesiredVelocity()

◆ GetHeight()

◆ GetMaxAccel()

◆ GetMaxSpeed()

◆ GetNavigationPushiness()

◆ GetNavigationQuality()

◆ GetObstacleAvoidanceType()

◆ GetPosition()

◆ GetQueryFilterType()

◆ GetRadius()

◆ GetRequestedTargetType()

◆ GetTargetPosition()

◆ GetTargetState()

◆ GetTargetVelocity()

◆ GetUpdateNodePosition()

◆ HasArrived()

◆ HasRequestedTarget()

◆ IsInCrowd()

◆ OnMarkedDirty()

◆ RegisterObject()

◆ SetHeight()

◆ SetMaxAccel()

◆ SetMaxSpeed()

◆ SetNavigationPushiness()

◆ SetNavigationQuality()

◆ SetObstacleAvoidanceType()

◆ SetQueryFilterType()

◆ SetRadius()

◆ SetTargetPosition()

◆ SetTargetVelocity()

◆ SetUpdateNodePosition()
