Dviglo::AnimationController Class Reference

Component that drives an AnimatedModel's animations. More...

#include </home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Graphics/AnimationController.h>

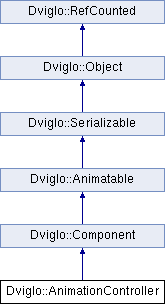

Inheritance diagram for Dviglo::AnimationController:

Public Member Functions
	AnimationController (Context *context)
	Construct.
	~AnimationController () override
	Destruct.
void	OnSetEnabled () override
	Handle enabled/disabled state change.
virtual void	Update (float timeStep)
	Update the animations. Is called from HandleScenePostUpdate().
bool	Play (const String &name, unsigned char layer, bool looped, float fadeInTime=0.0f)
	Play an animation and set full target weight. Name must be the full resource name. Return true on success.
bool	PlayExclusive (const String &name, unsigned char layer, bool looped, float fadeTime=0.0f)
	Play an animation, set full target weight and fade out all other animations on the same layer. Name must be the full resource name. Return true on success.
bool	Stop (const String &name, float fadeOutTime=0.0f)
	Stop an animation. Zero fadetime is instant. Return true on success.
void	StopLayer (unsigned char layer, float fadeOutTime=0.0f)
	Stop all animations on a specific layer. Zero fadetime is instant.
void	StopAll (float fadeOutTime=0.0f)
	Stop all animations. Zero fadetime is instant.
bool	Fade (const String &name, float targetWeight, float fadeTime)
	Fade animation to target weight. Return true on success.
bool	FadeOthers (const String &name, float targetWeight, float fadeTime)
	Fade other animations on the same layer to target weight. Return true on success.
bool	SetLayer (const String &name, unsigned char layer)
	Set animation blending layer priority. Return true on success.
bool	SetStartBone (const String &name, const String &startBoneName)
	Set animation start bone. Return true on success.
bool	SetTime (const String &name, float time)
	Set animation time position. Return true on success.
bool	SetWeight (const String &name, float weight)
	Set animation weight. Return true on success.
bool	SetLooped (const String &name, bool enable)
	Set animation looping. Return true on success.
bool	SetSpeed (const String &name, float speed)
	Set animation speed. Return true on success.
bool	SetAutoFade (const String &name, float fadeOutTime)
	Set animation autofade at end (non-looped animations only). Zero time disables. Return true on success.
bool	SetRemoveOnCompletion (const String &name, bool removeOnCompletion)
	Set whether an animation auto-removes on completion.
bool	SetBlendMode (const String &name, AnimationBlendMode mode)
	Set animation blending mode. Return true on success.
bool	IsPlaying (const String &name) const
	Return whether an animation is active. Note that non-looping animations that are being clamped at the end also return true.
bool	IsPlaying (unsigned char layer) const
	Return whether any animation is active on a specific layer.
bool	IsFadingIn (const String &name) const
	Return whether an animation is fading in.
bool	IsFadingOut (const String &name) const
	Return whether an animation is fading out.
bool	IsAtEnd (const String &name) const
	Return whether an animation is at its end. Will return false if the animation is not active at all.
unsigned char	GetLayer (const String &name) const
	Return animation blending layer.
Bone *	GetStartBone (const String &name) const
	Return animation start bone, or null if no such animation.
const String &	GetStartBoneName (const String &name) const
	Return animation start bone name, or empty string if no such animation.
float	GetTime (const String &name) const
	Return animation time position.
float	GetWeight (const String &name) const
	Return animation weight.
bool	IsLooped (const String &name) const
	Return animation looping.
AnimationBlendMode	GetBlendMode (const String &name) const
	Return animation blending mode.
float	GetLength (const String &name) const
	Return animation length.
float	GetSpeed (const String &name) const
	Return animation speed.
float	GetFadeTarget (const String &name) const
	Return animation fade target weight.
float	GetFadeTime (const String &name) const
	Return animation fade time.
float	GetAutoFade (const String &name) const
	Return animation autofade time.
bool	GetRemoveOnCompletion (const String &name) const
	Return whether animation auto-removes on completion, or false if no such animation.
AnimationState *	GetAnimationState (const String &name) const
	Find an animation state by animation name.
AnimationState *	GetAnimationState (StringHash nameHash) const
	Find an animation state by animation name hash.
const Vector< AnimationControl > &	GetAnimations () const
	Return the animation control structures for inspection.
void	SetAnimationsAttr (const VariantVector &value)
	Set animation control structures attribute.
void	SetNetAnimationsAttr (const PODVector< unsigned char > &value)
	Set animations attribute for network replication.
void	SetNodeAnimationStatesAttr (const VariantVector &value)
	Set node animation states attribute.
VariantVector	GetAnimationsAttr () const
	Return animation control structures attribute.
const PODVector< unsigned char > &	GetNetAnimationsAttr () const
	Return animations attribute for network replication.
VariantVector	GetNodeAnimationStatesAttr () const
	Return node animation states attribute.
Public Member Functions inherited from Dviglo::Component
	Component (Context *context)
	Construct.
	~Component () override
	Destruct.
bool	Save (Serializer &dest) const override
	Save as binary data. Return true if successful.
bool	SaveXML (XMLElement &dest) const override
	Save as XML data. Return true if successful.
bool	SaveJSON (JSONValue &dest) const override
	Save as JSON data. Return true if successful.
void	MarkNetworkUpdate () override
	Mark for attribute check on the next network update.
virtual void	GetDependencyNodes (PODVector< Node * > &dest)
	Return the depended on nodes to order network updates.
virtual void	DrawDebugGeometry (DebugRenderer *debug, bool depthTest)
	Visualize the component as debug geometry.
void	SetEnabled (bool enable)
void	Remove ()
	Remove from the scene node. If no other shared pointer references exist, causes immediate deletion.
unsigned	GetID () const
bool	IsReplicated () const
Node *	GetNode () const
Scene *	GetScene () const
	Return the scene the node belongs to.
bool	IsEnabled () const
bool	IsEnabledEffective () const
Component *	GetComponent (StringHash type) const
	Return component in the same scene node by type. If there are several, returns the first.
void	GetComponents (PODVector< Component * > &dest, StringHash type) const
	Return components in the same scene node by type.
template<class T >
T *	GetComponent () const
	Template version of returning a component in the same scene node by type.
template<class T >
void	GetComponents (PODVector< T * > &dest) const
	Template version of returning components in the same scene node by type.
void	AddReplicationState (ComponentReplicationState *state)
	Add a replication state that is tracking this component.
void	PrepareNetworkUpdate ()
	Prepare network update by comparing attributes and marking replication states dirty as necessary.
void	CleanupConnection (Connection *connection)
Public Member Functions inherited from Dviglo::Animatable
	Animatable (Context *context)
	Construct.
	~Animatable () override
	Destruct.
bool	LoadXML (const XMLElement &source) override
	Load from XML data. Return true if successful.
bool	LoadJSON (const JSONValue &source) override
	Load from JSON data. Return true if successful.
void	SetAnimationEnabled (bool enable)
void	SetAnimationTime (float time)
	Set time position of all attribute animations or an object animation manually. Automatic update should be disabled in this case.
void	SetObjectAnimation (ObjectAnimation *objectAnimation)
void	SetAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode=WM_LOOP, float speed=1.0f)
	Set attribute animation.
void	SetAttributeAnimationWrapMode (const String &name, WrapMode wrapMode)
	Set attribute animation wrap mode.
void	SetAttributeAnimationSpeed (const String &name, float speed)
	Set attribute animation speed.
void	SetAttributeAnimationTime (const String &name, float time)
	Set attribute animation time position manually. Automatic update should be disabled in this case.
void	RemoveObjectAnimation ()
	Remove object animation. Same as calling SetObjectAnimation with a null pointer.
void	RemoveAttributeAnimation (const String &name)
	Remove attribute animation. Same as calling SetAttributeAnimation with a null pointer.
bool	GetAnimationEnabled () const
ObjectAnimation *	GetObjectAnimation () const
ValueAnimation *	GetAttributeAnimation (const String &name) const
	Return attribute animation.
WrapMode	GetAttributeAnimationWrapMode (const String &name) const
	Return attribute animation wrap mode.
float	GetAttributeAnimationSpeed (const String &name) const
	Return attribute animation speed.
float	GetAttributeAnimationTime (const String &name) const
	Return attribute animation time position.
void	SetObjectAnimationAttr (const ResourceRef &value)
	Set object animation attribute.
ResourceRef	GetObjectAnimationAttr () const
	Return object animation attribute.
Public Member Functions inherited from Dviglo::Serializable
	Serializable (Context *context)
	Construct.
	~Serializable () override
	Destruct.
virtual void	OnSetAttribute (const AttributeInfo &attr, const Variant &src)
	Handle attribute write access. Default implementation writes to the variable at offset, or invokes the set accessor.
virtual void	OnGetAttribute (const AttributeInfo &attr, Variant &dest) const
	Handle attribute read access. Default implementation reads the variable at offset, or invokes the get accessor.
virtual const Vector< AttributeInfo > *	GetAttributes () const
	Return attribute descriptions, or null if none defined.
virtual const Vector< AttributeInfo > *	GetNetworkAttributes () const
	Return network replication attribute descriptions, or null if none defined.
virtual bool	Load (Deserializer &source)
	Load from binary data. Return true if successful.
virtual void	ApplyAttributes ()
	Apply attribute changes that can not be applied immediately. Called after scene load or a network update.
virtual bool	SaveDefaultAttributes () const
	Return whether should save default-valued attributes into XML. Default false.
bool	SetAttribute (unsigned index, const Variant &value)
bool	SetAttribute (const String &name, const Variant &value)
	Set attribute by name. Return true if successfully set.
void	SetInstanceDefault (bool enable)
	Set instance-level default flag.
void	ResetToDefault ()
	Reset all editable attributes to their default values.
void	RemoveInstanceDefault ()
	Remove instance's default values if they are set previously.
void	SetTemporary (bool enable)
void	SetInterceptNetworkUpdate (const String &attributeName, bool enable)
	Enable interception of an attribute from network updates. Intercepted attributes are sent as events instead of applying directly. This can be used to implement client side prediction.
void	AllocateNetworkState ()
	Allocate network attribute state.
void	WriteInitialDeltaUpdate (Serializer &dest, unsigned char timeStamp)
	Write initial delta network update.
void	WriteDeltaUpdate (Serializer &dest, const DirtyBits &attributeBits, unsigned char timeStamp)
	Write a delta network update according to dirty attribute bits.
void	WriteLatestDataUpdate (Serializer &dest, unsigned char timeStamp)
	Write a latest data network update.
bool	ReadDeltaUpdate (Deserializer &source)
	Read and apply a network delta update. Return true if attributes were changed.
bool	ReadLatestDataUpdate (Deserializer &source)
	Read and apply a network latest data update. Return true if attributes were changed.
Variant	GetAttribute (unsigned index) const
Variant	GetAttribute (const String &name) const
	Return attribute value by name. Return empty if not found.
Variant	GetAttributeDefault (unsigned index) const
Variant	GetAttributeDefault (const String &name) const
	Return attribute default value by name. Return empty if not found.
unsigned	GetNumAttributes () const
unsigned	GetNumNetworkAttributes () const
	Return number of network replication attributes.
bool	IsTemporary () const
bool	GetInterceptNetworkUpdate (const String &attributeName) const
	Return whether an attribute's network updates are being intercepted.
NetworkState *	GetNetworkState () const
	Return the network attribute state, if allocated.
Public Member Functions inherited from Dviglo::Object
	Object (Context *context)
	Construct.
	~Object () override
	Destruct. Clean up self from event sender & receiver structures.
virtual StringHash	GetType () const =0
virtual const String &	GetTypeName () const =0
virtual const TypeInfo *	GetTypeInfo () const =0
	Return type info.
virtual void	OnEvent (Object *sender, StringHash eventType, VariantMap &eventData)
	Handle event.
bool	IsInstanceOf (StringHash type) const
	Check current instance is type of specified type.
bool	IsInstanceOf (const TypeInfo *typeInfo) const
	Check current instance is type of specified type.
template<typename T >
bool	IsInstanceOf () const
	Check current instance is type of specified class.
template<typename T >
T *	Cast ()
	Cast the object to specified most derived class.
template<typename T >
const T *	Cast () const
	Cast the object to specified most derived class.
void	SubscribeToEvent (StringHash eventType, EventHandler *handler)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, EventHandler *handler)
	Subscribe to a specific sender's event.
void	SubscribeToEvent (StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to a specific sender's event.
void	UnsubscribeFromEvent (StringHash eventType)
	Unsubscribe from an event.
void	UnsubscribeFromEvent (Object *sender, StringHash eventType)
	Unsubscribe from a specific sender's event.
void	UnsubscribeFromEvents (Object *sender)
	Unsubscribe from a specific sender's events.
void	UnsubscribeFromAllEvents ()
	Unsubscribe from all events.
void	UnsubscribeFromAllEventsExcept (const PODVector< StringHash > &exceptions, bool onlyUserData)
	Unsubscribe from all events except those listed, and optionally only those with userdata (script registered events).
void	SendEvent (StringHash eventType)
	Send event to all subscribers.
void	SendEvent (StringHash eventType, VariantMap &eventData)
	Send event with parameters to all subscribers.
VariantMap &	GetEventDataMap () const
	Return a preallocated map for event data. Used for optimization to avoid constant re-allocation of event data maps.
template<typename... Args>
void	SendEvent (StringHash eventType, Args... args)
	Send event with variadic parameter pairs to all subscribers. The parameter pairs is a list of paramID and paramValue separated by comma, one pair after another.
Context *	GetContext () const
	Return execution context.
const Variant &	GetGlobalVar (StringHash key) const
const VariantMap &	GetGlobalVars () const
void	SetGlobalVar (StringHash key, const Variant &value)
Object *	GetSubsystem (StringHash type) const
	Return subsystem by type.
Object *	GetEventSender () const
	Return active event sender. Null outside event handling.
EventHandler *	GetEventHandler () const
	Return active event handler. Null outside event handling.
bool	HasSubscribedToEvent (StringHash eventType) const
	Return whether has subscribed to an event without specific sender.
bool	HasSubscribedToEvent (Object *sender, StringHash eventType) const
	Return whether has subscribed to a specific sender's event.
bool	HasEventHandlers () const
	Return whether has subscribed to any event.
template<class T >
T *	GetSubsystem () const
	Template version of returning a subsystem.
const String &	GetCategory () const
void	SetBlockEvents (bool block)
	Block object from sending and receiving events.
bool	GetBlockEvents () const
	Return sending and receiving events blocking status.
Public Member Functions inherited from Dviglo::RefCounted
	RefCounted ()
	Construct. Allocate the reference count structure and set an initial self weak reference.
virtual	~RefCounted ()
	Destruct. Mark as expired and also delete the reference count structure if no outside weak references exist.
	RefCounted (const RefCounted &rhs)=delete
	Prevent copy construction.
RefCounted &	operator= (const RefCounted &rhs)=delete
	Prevent assignment.
void	AddRef ()
void	ReleaseRef ()
int	Refs () const
int	WeakRefs () const
RefCount *	RefCountPtr ()
	Return pointer to the reference count structure.

Static Public Member Functions
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Animatable
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Object
static const TypeInfo *	GetTypeInfoStatic ()
	Return type info static.

Protected Member Functions
void	OnSceneSet (Scene *scene) override
	Handle scene being assigned.
Protected Member Functions inherited from Dviglo::Component
void	OnAttributeAnimationAdded () override
	Handle attribute animation added.
void	OnAttributeAnimationRemoved () override
	Handle attribute animation removed.
virtual void	OnNodeSet (Node *node)
	Handle scene node being assigned at creation.
virtual void	OnMarkedDirty (Node *node)
	Handle scene node transform dirtied.
virtual void	OnNodeSetEnabled (Node *node)
	Handle scene node enabled status changing.
void	SetID (unsigned id)
void	SetNode (Node *node)
	Set scene node. Called by Node when creating the component.
void	HandleAttributeAnimationUpdate (StringHash eventType, VariantMap &eventData)
	Handle scene attribute animation update event.
Component *	GetFixedUpdateSource ()
	Return a component from the scene root that sends out fixed update events (either PhysicsWorld or PhysicsWorld2D). Return null if neither exists.
void	DoAutoRemove (AutoRemoveMode mode)
	Perform autoremove. Called by subclasses. Caller should keep a weak pointer to itself to check whether was actually removed, and return immediately without further member operations in that case.
Protected Member Functions inherited from Dviglo::Animatable
virtual Animatable *	FindAttributeAnimationTarget (const String &name, String &outName)
	Find target of an attribute animation from object hierarchy by name.
void	SetObjectAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode, float speed)
	Set object attribute animation internal.
void	OnObjectAnimationAdded (ObjectAnimation *objectAnimation)
	Handle object animation added.
void	OnObjectAnimationRemoved (ObjectAnimation *objectAnimation)
	Handle object animation removed.
void	UpdateAttributeAnimations (float timeStep)
	Update attribute animations.
bool	IsAnimatedNetworkAttribute (const AttributeInfo &attrInfo) const
	Is animated network attribute.
AttributeAnimationInfo *	GetAttributeAnimationInfo (const String &name) const
	Return attribute animation info.
void	HandleAttributeAnimationAdded (StringHash eventType, VariantMap &eventData)
	Handle attribute animation added.
void	HandleAttributeAnimationRemoved (StringHash eventType, VariantMap &eventData)
	Handle attribute animation removed.

Private Member Functions
	URHO3D_OBJECT (AnimationController, Component)
AnimationState *	AddAnimationState (Animation *animation)
	Add an animation state either to AnimatedModel or as a node animation.
void	RemoveAnimationState (AnimationState *state)
	Remove an animation state.
void	FindAnimation (const String &name, unsigned &index, AnimationState *&state) const
	Find the internal index and animation state of an animation.
void	HandleScenePostUpdate (StringHash eventType, VariantMap &eventData)
	Handle scene post-update event.

Private Attributes
Vector< AnimationControl >	animations_
	Animation control structures.
Vector< SharedPtr< AnimationState > >	nodeAnimationStates_
	Node hierarchy mode animation states.
VectorBuffer	attrBuffer_
	Attribute buffer for network replication.

Additional Inherited Members
Protected Attributes inherited from Dviglo::Component
Node *	node_
	Scene node.
unsigned	id_
	Unique ID within the scene.
bool	networkUpdate_
	Network update queued flag.
bool	enabled_
	Enabled flag.
Protected Attributes inherited from Dviglo::Animatable
bool	animationEnabled_
	Animation enabled.
SharedPtr< ObjectAnimation >	objectAnimation_
	Animation.
HashSet< const AttributeInfo * >	animatedNetworkAttributes_
	Animated network attribute set.
HashMap< String, SharedPtr< AttributeAnimationInfo > >	attributeAnimationInfos_
	Attribute animation infos.
Protected Attributes inherited from Dviglo::Serializable
UniquePtr< NetworkState >	networkState_
	Network attribute state.
Protected Attributes inherited from Dviglo::Object
Context *	context_
	Execution context.

Detailed Description

Component that drives an AnimatedModel's animations.

Member Function Documentation

RegisterObject()

void Dviglo::AnimationController::RegisterObject ( Context *  context )

static

Register object factory.

---

The documentation for this class was generated from the following files:

• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Graphics/AnimationController.h
• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Graphics/AnimationController.cpp
