Dviglo::RaycastVehicle Class Reference

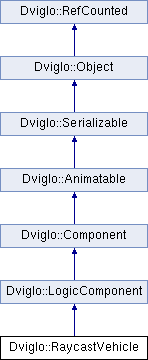

Inheritance diagram for Dviglo::RaycastVehicle:

Public Member Functions
	RaycastVehicle (Dviglo::Context *context)
	Construct.
	~RaycastVehicle () override
	Destruct.
void	OnSetEnabled () override
	Handle enabled/disabled state change.
void	ApplyAttributes () override
	Perform post-load after deserialization. Acquire the components from the scene nodes.
void	AddWheel (Node *wheelNode, Vector3 wheelDirection, Vector3 wheelAxle, float restLength, float wheelRadius, bool frontWheel)
	Add a wheel. All parameters are relative to RigidBody / node.
void	ResetSuspension ()
	Reset all suspension.
void	UpdateWheelTransform (int wheel, bool interpolated)
	Update transform for particular wheel.
void	SetSteeringValue (int wheel, float steeringValue)
	Set steering value of particular wheel.
void	SetWheelSuspensionStiffness (int wheel, float stiffness)
	Set suspension stiffness for particular wheel.
void	SetWheelMaxSuspensionForce (int wheel, float force)
	Set wheel max suspension force. Good results are often obtained by a value that is about 3x to 4x the vehicle weight.
void	SetWheelDampingRelaxation (int wheel, float damping)
	Set wheel damping relaxation.
void	SetWheelDampingCompression (int wheel, float compression)
	Set wheel damping compression.
void	SetWheelFrictionSlip (int wheel, float slip)
	Set wheel friction slip.
void	SetWheelRollInfluence (int wheel, float rollInfluence)
	Set wheel roll influence.
void	SetEngineForce (int wheel, float force)
	Set engine force for the wheel.
void	SetBrake (int wheel, float force)
	Set hand brake (wheel rotation blocking force).
void	SetWheelRadius (int wheel, float wheelRadius)
	Set wheel radius.
void	ResetWheels ()
	Sets node initial positions.
void	SetWheelSkidInfo (int wheel, float factor)
	Set sliding factor 0 <= x <= 1. The less the value, more sliding.
bool	WheelIsGrounded (int wheel) const
	True if wheel touches ground (raycast hits something).
void	SetMaxSuspensionTravel (int wheel, float maxSuspensionTravel)
	Set maximum suspension travel value.
void	SetWheelDirection (int wheel, Vector3 direction)
	Set wheel direction vector.
void	SetWheelAxle (int wheel, Vector3 axle)
	Set wheel axle vector.
void	SetMaxSideSlipSpeed (float speed)
void	SetWheelSkidInfoCumulative (int wheel, float skid)
	Set cumulative skid info.
void	SetInAirRPM (float rpm)
void	SetCoordinateSystem (const IntVector3 &coordinateSystem=RIGHT_FORWARD_UP)
void	Init ()
	Init the vehicle component after creation.
void	FixedUpdate (float timeStep) override
	Perform fixed step pre-update.
void	FixedPostUpdate (float timeStep) override
	Perform fixed step post-update.
void	PostUpdate (float timeStep) override
	Perform variable step post-update.
Vector3	GetWheelPosition (int wheel)
	Get wheel position relative to RigidBody.
Quaternion	GetWheelRotation (int wheel)
	Get wheel rotation relative to RigidBody.
Vector3	GetWheelConnectionPoint (int wheel) const
	Get wheel connection point relative to RigidBody.
int	GetNumWheels () const
Node *	GetWheelNode (int wheel) const
	Get node of the wheel.
float	GetSteeringValue (int wheel) const
	Get steering value of particular wheel.
float	GetWheelSuspensionStiffness (int wheel) const
	Get suspension stiffness for particular wheel.
float	GetWheelMaxSuspensionForce (int wheel) const
	Get wheel max suspension force.
float	GetWheelDampingRelaxation (int wheel) const
	Get wheel damping relaxation.
float	GetWheelDampingCompression (int wheel) const
	Get wheel damping compression.
float	GetWheelFrictionSlip (int wheel) const
	Get wheel friction slip.
float	GetWheelRollInfluence (int wheel) const
	Get wheel roll influence.
float	GetEngineForce (int wheel) const
	Get engine force for the wheel.
float	GetBrake (int wheel) const
	Get hand brake value.
float	GetWheelRadius (int wheel) const
	Get wheel radius.
void	SetWheelRestLength (int wheel, float length)
	Get wheel rest length.
float	GetWheelRestLength (int wheel) const
	Get wheel rest length.
float	GetMaxSuspensionTravel (int wheel)
	Get maximum suspension travel value.
Vector3	GetWheelAxle (int wheel) const
	Get wheel axle vector.
float	GetWheelSideSlipSpeed (int wheel) const
	Get wheel slide speed.
float	GetMaxSideSlipSpeed () const
float	GetWheelSkidInfo (int wheel) const
	Sliding factor 0 <= x <= 1.
Vector3	GetWheelDirection (int wheel) const
	Get wheel direction vector.
float	GetWheelSkidInfoCumulative (int wheel) const
	Get cumulative skid info.
bool	IsFrontWheel (int wheel) const
	True if front wheel, otherwise false.
Vector3	GetContactPosition (int wheel) const
	Get wheel contact position.
Vector3	GetContactNormal (int wheel) const
	Get contact normal.
float	GetInAirRPM () const
IntVector3	GetCoordinateSystem () const
VariantVector	GetWheelDataAttr () const
	Get wheel data attribute for serialization.
void	SetWheelDataAttr (const VariantVector &value)
	Set wheel data attribute during loading.
Public Member Functions inherited from Dviglo::Component
	Component (Context *context)
	Construct.
	~Component () override
	Destruct.
bool	Save (Serializer &dest) const override
	Save as binary data. Return true if successful.
bool	SaveXML (XMLElement &dest) const override
	Save as XML data. Return true if successful.
bool	SaveJSON (JSONValue &dest) const override
	Save as JSON data. Return true if successful.
void	MarkNetworkUpdate () override
	Mark for attribute check on the next network update.
virtual void	GetDependencyNodes (PODVector< Node * > &dest)
	Return the depended on nodes to order network updates.
virtual void	DrawDebugGeometry (DebugRenderer *debug, bool depthTest)
	Visualize the component as debug geometry.
void	SetEnabled (bool enable)
void	Remove ()
	Remove from the scene node. If no other shared pointer references exist, causes immediate deletion.
unsigned	GetID () const
bool	IsReplicated () const
Node *	GetNode () const
Scene *	GetScene () const
	Return the scene the node belongs to.
bool	IsEnabled () const
bool	IsEnabledEffective () const
Component *	GetComponent (StringHash type) const
	Return component in the same scene node by type. If there are several, returns the first.
void	GetComponents (PODVector< Component * > &dest, StringHash type) const
	Return components in the same scene node by type.
template<class T >
T *	GetComponent () const
	Template version of returning a component in the same scene node by type.
template<class T >
void	GetComponents (PODVector< T * > &dest) const
	Template version of returning components in the same scene node by type.
void	AddReplicationState (ComponentReplicationState *state)
	Add a replication state that is tracking this component.
void	PrepareNetworkUpdate ()
	Prepare network update by comparing attributes and marking replication states dirty as necessary.
void	CleanupConnection (Connection *connection)
Public Member Functions inherited from Dviglo::Animatable
	Animatable (Context *context)
	Construct.
	~Animatable () override
	Destruct.
bool	LoadXML (const XMLElement &source) override
	Load from XML data. Return true if successful.
bool	LoadJSON (const JSONValue &source) override
	Load from JSON data. Return true if successful.
void	SetAnimationEnabled (bool enable)
void	SetAnimationTime (float time)
	Set time position of all attribute animations or an object animation manually. Automatic update should be disabled in this case.
void	SetObjectAnimation (ObjectAnimation *objectAnimation)
void	SetAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode=WM_LOOP, float speed=1.0f)
	Set attribute animation.
void	SetAttributeAnimationWrapMode (const String &name, WrapMode wrapMode)
	Set attribute animation wrap mode.
void	SetAttributeAnimationSpeed (const String &name, float speed)
	Set attribute animation speed.
void	SetAttributeAnimationTime (const String &name, float time)
	Set attribute animation time position manually. Automatic update should be disabled in this case.
void	RemoveObjectAnimation ()
	Remove object animation. Same as calling SetObjectAnimation with a null pointer.
void	RemoveAttributeAnimation (const String &name)
	Remove attribute animation. Same as calling SetAttributeAnimation with a null pointer.
bool	GetAnimationEnabled () const
ObjectAnimation *	GetObjectAnimation () const
ValueAnimation *	GetAttributeAnimation (const String &name) const
	Return attribute animation.
WrapMode	GetAttributeAnimationWrapMode (const String &name) const
	Return attribute animation wrap mode.
float	GetAttributeAnimationSpeed (const String &name) const
	Return attribute animation speed.
float	GetAttributeAnimationTime (const String &name) const
	Return attribute animation time position.
void	SetObjectAnimationAttr (const ResourceRef &value)
	Set object animation attribute.
ResourceRef	GetObjectAnimationAttr () const
	Return object animation attribute.
Public Member Functions inherited from Dviglo::Serializable
	Serializable (Context *context)
	Construct.
	~Serializable () override
	Destruct.
virtual void	OnSetAttribute (const AttributeInfo &attr, const Variant &src)
	Handle attribute write access. Default implementation writes to the variable at offset, or invokes the set accessor.
virtual void	OnGetAttribute (const AttributeInfo &attr, Variant &dest) const
	Handle attribute read access. Default implementation reads the variable at offset, or invokes the get accessor.
virtual const Vector< AttributeInfo > *	GetAttributes () const
	Return attribute descriptions, or null if none defined.
virtual const Vector< AttributeInfo > *	GetNetworkAttributes () const
	Return network replication attribute descriptions, or null if none defined.
virtual bool	Load (Deserializer &source)
	Load from binary data. Return true if successful.
virtual bool	SaveDefaultAttributes () const
	Return whether should save default-valued attributes into XML. Default false.
bool	SetAttribute (unsigned index, const Variant &value)
bool	SetAttribute (const String &name, const Variant &value)
	Set attribute by name. Return true if successfully set.
void	SetInstanceDefault (bool enable)
	Set instance-level default flag.
void	ResetToDefault ()
	Reset all editable attributes to their default values.
void	RemoveInstanceDefault ()
	Remove instance's default values if they are set previously.
void	SetTemporary (bool enable)
void	SetInterceptNetworkUpdate (const String &attributeName, bool enable)
	Enable interception of an attribute from network updates. Intercepted attributes are sent as events instead of applying directly. This can be used to implement client side prediction.
void	AllocateNetworkState ()
	Allocate network attribute state.
void	WriteInitialDeltaUpdate (Serializer &dest, unsigned char timeStamp)
	Write initial delta network update.
void	WriteDeltaUpdate (Serializer &dest, const DirtyBits &attributeBits, unsigned char timeStamp)
	Write a delta network update according to dirty attribute bits.
void	WriteLatestDataUpdate (Serializer &dest, unsigned char timeStamp)
	Write a latest data network update.
bool	ReadDeltaUpdate (Deserializer &source)
	Read and apply a network delta update. Return true if attributes were changed.
bool	ReadLatestDataUpdate (Deserializer &source)
	Read and apply a network latest data update. Return true if attributes were changed.
Variant	GetAttribute (unsigned index) const
Variant	GetAttribute (const String &name) const
	Return attribute value by name. Return empty if not found.
Variant	GetAttributeDefault (unsigned index) const
Variant	GetAttributeDefault (const String &name) const
	Return attribute default value by name. Return empty if not found.
unsigned	GetNumAttributes () const
unsigned	GetNumNetworkAttributes () const
	Return number of network replication attributes.
bool	IsTemporary () const
bool	GetInterceptNetworkUpdate (const String &attributeName) const
	Return whether an attribute's network updates are being intercepted.
NetworkState *	GetNetworkState () const
	Return the network attribute state, if allocated.
Public Member Functions inherited from Dviglo::Object
	Object (Context *context)
	Construct.
	~Object () override
	Destruct. Clean up self from event sender & receiver structures.
virtual StringHash	GetType () const =0
virtual const String &	GetTypeName () const =0
virtual const TypeInfo *	GetTypeInfo () const =0
	Return type info.
virtual void	OnEvent (Object *sender, StringHash eventType, VariantMap &eventData)
	Handle event.
bool	IsInstanceOf (StringHash type) const
	Check current instance is type of specified type.
bool	IsInstanceOf (const TypeInfo *typeInfo) const
	Check current instance is type of specified type.
template<typename T >
bool	IsInstanceOf () const
	Check current instance is type of specified class.
template<typename T >
T *	Cast ()
	Cast the object to specified most derived class.
template<typename T >
const T *	Cast () const
	Cast the object to specified most derived class.
void	SubscribeToEvent (StringHash eventType, EventHandler *handler)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, EventHandler *handler)
	Subscribe to a specific sender's event.
void	SubscribeToEvent (StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to a specific sender's event.
void	UnsubscribeFromEvent (StringHash eventType)
	Unsubscribe from an event.
void	UnsubscribeFromEvent (Object *sender, StringHash eventType)
	Unsubscribe from a specific sender's event.
void	UnsubscribeFromEvents (Object *sender)
	Unsubscribe from a specific sender's events.
void	UnsubscribeFromAllEvents ()
	Unsubscribe from all events.
void	UnsubscribeFromAllEventsExcept (const PODVector< StringHash > &exceptions, bool onlyUserData)
	Unsubscribe from all events except those listed, and optionally only those with userdata (script registered events).
void	SendEvent (StringHash eventType)
	Send event to all subscribers.
void	SendEvent (StringHash eventType, VariantMap &eventData)
	Send event with parameters to all subscribers.
VariantMap &	GetEventDataMap () const
	Return a preallocated map for event data. Used for optimization to avoid constant re-allocation of event data maps.
template<typename... Args>
void	SendEvent (StringHash eventType, Args... args)
	Send event with variadic parameter pairs to all subscribers. The parameter pairs is a list of paramID and paramValue separated by comma, one pair after another.
Context *	GetContext () const
	Return execution context.
const Variant &	GetGlobalVar (StringHash key) const
const VariantMap &	GetGlobalVars () const
void	SetGlobalVar (StringHash key, const Variant &value)
Object *	GetSubsystem (StringHash type) const
	Return subsystem by type.
Object *	GetEventSender () const
	Return active event sender. Null outside event handling.
EventHandler *	GetEventHandler () const
	Return active event handler. Null outside event handling.
bool	HasSubscribedToEvent (StringHash eventType) const
	Return whether has subscribed to an event without specific sender.
bool	HasSubscribedToEvent (Object *sender, StringHash eventType) const
	Return whether has subscribed to a specific sender's event.
bool	HasEventHandlers () const
	Return whether has subscribed to any event.
template<class T >
T *	GetSubsystem () const
	Template version of returning a subsystem.
const String &	GetCategory () const
void	SetBlockEvents (bool block)
	Block object from sending and receiving events.
bool	GetBlockEvents () const
	Return sending and receiving events blocking status.
Public Member Functions inherited from Dviglo::RefCounted
	RefCounted ()
	Construct. Allocate the reference count structure and set an initial self weak reference.
virtual	~RefCounted ()
	Destruct. Mark as expired and also delete the reference count structure if no outside weak references exist.
	RefCounted (const RefCounted &rhs)=delete
	Prevent copy construction.
RefCounted &	operator= (const RefCounted &rhs)=delete
	Prevent assignment.
void	AddRef ()
void	ReleaseRef ()
int	Refs () const
int	WeakRefs () const
RefCount *	RefCountPtr ()
	Return pointer to the reference count structure.

Static Public Member Functions
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Animatable
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Object
static const TypeInfo *	GetTypeInfoStatic ()
	Return type info static.

Static Public Attributes
static const IntVector3	RIGHT_UP_FORWARD
	(0, 1, 2) coordinate system (default).
static const IntVector3	RIGHT_FORWARD_UP
	(0, 2, 1) coordinate system.
static const IntVector3	UP_FORWARD_RIGHT
	(1, 2, 0) coordinate system.
static const IntVector3	UP_RIGHT_FORWARD
	(1, 0, 2) coordinate system.
static const IntVector3	FORWARD_RIGHT_UP
	(2, 0, 1) coordinate system.
static const IntVector3	FORWARD_UP_RIGHT
	(2, 1, 0) coordinate system.

Private Member Functions
	URHO3D_OBJECT (RaycastVehicle, LogicComponent)

Private Attributes
bool	activate_
	If the RigidBody should be activated.
WeakPtr< RigidBody >	hullBody_
	Hull RigidBody.
RaycastVehicleData *	vehicleData_
	Opaque Bullet data hidden from public.
IntVector3	coordinateSystem_
	Coordinate system.
Vector< Node * >	wheelNodes_
	Nodes of all wheels.
Vector< Quaternion >	origRotation_
	All wheels original rotations. These are applied in addition to wheel rotations by btRaycastVehicle.
float	inAirRPM_
	Revolutions per minute value for in-air motor wheels. FIXME: set this one per wheel.
Vector< float >	skidInfoCumulative_
	Per-wheel extra settings.
Vector< float >	wheelSideSlipSpeed_
	Wheel side movement speed.
float	maxSideSlipSpeed_
	Side slip speed threshold.
VariantVector	loadedWheelData_
	Loaded data temporarily wait here for ApplyAttributes to come pick them up.

Additional Inherited Members
Protected Member Functions inherited from Dviglo::LogicComponent
void	OnNodeSet (Node *node) override
	Handle scene node being assigned at creation.
void	OnSceneSet (Scene *scene) override
	Handle scene being assigned.
Protected Member Functions inherited from Dviglo::Component
void	OnAttributeAnimationAdded () override
	Handle attribute animation added.
void	OnAttributeAnimationRemoved () override
	Handle attribute animation removed.
virtual void	OnMarkedDirty (Node *node)
	Handle scene node transform dirtied.
virtual void	OnNodeSetEnabled (Node *node)
	Handle scene node enabled status changing.
void	SetID (unsigned id)
void	SetNode (Node *node)
	Set scene node. Called by Node when creating the component.
void	HandleAttributeAnimationUpdate (StringHash eventType, VariantMap &eventData)
	Handle scene attribute animation update event.
Component *	GetFixedUpdateSource ()
	Return a component from the scene root that sends out fixed update events (either PhysicsWorld or PhysicsWorld2D). Return null if neither exists.
void	DoAutoRemove (AutoRemoveMode mode)
	Perform autoremove. Called by subclasses. Caller should keep a weak pointer to itself to check whether was actually removed, and return immediately without further member operations in that case.
Protected Member Functions inherited from Dviglo::Animatable
virtual Animatable *	FindAttributeAnimationTarget (const String &name, String &outName)
	Find target of an attribute animation from object hierarchy by name.
void	SetObjectAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode, float speed)
	Set object attribute animation internal.
void	OnObjectAnimationAdded (ObjectAnimation *objectAnimation)
	Handle object animation added.
void	OnObjectAnimationRemoved (ObjectAnimation *objectAnimation)
	Handle object animation removed.
void	UpdateAttributeAnimations (float timeStep)
	Update attribute animations.
bool	IsAnimatedNetworkAttribute (const AttributeInfo &attrInfo) const
	Is animated network attribute.
AttributeAnimationInfo *	GetAttributeAnimationInfo (const String &name) const
	Return attribute animation info.
void	HandleAttributeAnimationAdded (StringHash eventType, VariantMap &eventData)
	Handle attribute animation added.
void	HandleAttributeAnimationRemoved (StringHash eventType, VariantMap &eventData)
	Handle attribute animation removed.
Protected Attributes inherited from Dviglo::Component
Node *	node_
	Scene node.
unsigned	id_
	Unique ID within the scene.
bool	networkUpdate_
	Network update queued flag.
bool	enabled_
	Enabled flag.
Protected Attributes inherited from Dviglo::Animatable
bool	animationEnabled_
	Animation enabled.
SharedPtr< ObjectAnimation >	objectAnimation_
	Animation.
HashSet< const AttributeInfo * >	animatedNetworkAttributes_
	Animated network attribute set.
HashMap< String, SharedPtr< AttributeAnimationInfo > >	attributeAnimationInfos_
	Attribute animation infos.
Protected Attributes inherited from Dviglo::Serializable
UniquePtr< NetworkState >	networkState_
	Network attribute state.
Protected Attributes inherited from Dviglo::Object
Context *	context_
	Execution context.

Member Function Documentation

GetCoordinateSystem()

IntVector3 Dviglo::RaycastVehicle::GetCoordinateSystem ( ) const

inline

Get the coordinate system.

GetInAirRPM()

float Dviglo::RaycastVehicle::GetInAirRPM

(

)

const

Get revolution per minute value for when wheel doesn't touch ground.

GetMaxSideSlipSpeed()

float Dviglo::RaycastVehicle::GetMaxSideSlipSpeed

(

)

const

Get side speed which is considered sliding.

GetNumWheels()

int Dviglo::RaycastVehicle::GetNumWheels

(

)

const

Get number of attached wheels.

RegisterObject()

void Dviglo::RaycastVehicle::RegisterObject ( Context *  context )

static

Register object factory and attributes.

SetCoordinateSystem()

void Dviglo::RaycastVehicle::SetCoordinateSystem

(

const IntVector3 &

coordinateSystem = RIGHT_FORWARD_UP

)

Set the coordinate system. The default is (0, 1, 2).

SetInAirRPM()

void Dviglo::RaycastVehicle::SetInAirRPM

(

float

rpm

)

Set revolution per minute value for when wheel doesn't touch ground. If set to 0 (or not set), calculated from engine force (probably not what you want).

SetMaxSideSlipSpeed()

void Dviglo::RaycastVehicle::SetMaxSideSlipSpeed

(

float

speed

)

Set side speed which is considered sliding.

---

The documentation for this class was generated from the following files:

• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Physics/RaycastVehicle.h
• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Physics/RaycastVehicle.cpp
