Dviglo::SoundSource Class Reference

Sound source component with stereo position. A sound source needs to be created to a node to be considered "enabled" and be able to play, however that node does not need to belong to a scene. More...

#include </home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Audio/SoundSource.h>

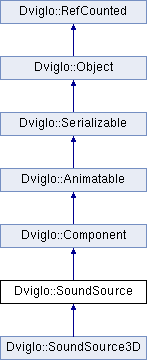

Inheritance diagram for Dviglo::SoundSource:

Public Member Functions
	SoundSource (Context *context)
	Construct.
	~SoundSource () override
	Destruct. Remove self from the audio subsystem.
void	Seek (float seekTime)
	Seek to time.
void	Play (Sound *sound)
	Play a sound.
void	Play (Sound *sound, float frequency)
	Play a sound with specified frequency.
void	Play (Sound *sound, float frequency, float gain)
	Play a sound with specified frequency and gain.
void	Play (Sound *sound, float frequency, float gain, float panning)
	Play a sound with specified frequency, gain and panning.
void	Play (SoundStream *stream)
	Start playing a sound stream.
void	Stop ()
	Stop playback.
void	SetSoundType (const String &type)
void	SetFrequency (float frequency)
void	SetGain (float gain)
void	SetAttenuation (float attenuation)
	Set attenuation. 1.0 is unaltered. Used for distance attenuated playback.
void	SetPanning (float panning)
void	SetAutoRemoveMode (AutoRemoveMode mode)
void	SetPlayPosition (signed char *pos)
	Set new playback position.
Sound *	GetSound () const
volatile signed char *	GetPlayPosition () const
	Return playback position.
String	GetSoundType () const
float	GetTimePosition () const
float	GetFrequency () const
float	GetGain () const
float	GetAttenuation () const
float	GetPanning () const
AutoRemoveMode	GetAutoRemoveMode () const
bool	IsPlaying () const
virtual void	Update (float timeStep)
	Update the sound source. Perform subclass specific operations. Called by Audio.
void	Mix (int *dest, unsigned samples, int mixRate, bool stereo, bool interpolation)
	Mix sound source output to a 32-bit clipping buffer. Called by Audio.
void	UpdateMasterGain ()
	Update the effective master gain. Called internally and by Audio when the master gain changes.
void	SetSoundAttr (const ResourceRef &value)
	Set sound attribute.
void	SetPositionAttr (int value)
	Set sound position attribute.
ResourceRef	GetSoundAttr () const
	Return sound attribute.
void	SetPlayingAttr (bool value)
	Set sound playing attribute.
int	GetPositionAttr () const
	Return sound position attribute.
Public Member Functions inherited from Dviglo::Component
	Component (Context *context)
	Construct.
	~Component () override
	Destruct.
virtual void	OnSetEnabled ()
	Handle enabled/disabled state change.
bool	Save (Serializer &dest) const override
	Save as binary data. Return true if successful.
bool	SaveXML (XMLElement &dest) const override
	Save as XML data. Return true if successful.
bool	SaveJSON (JSONValue &dest) const override
	Save as JSON data. Return true if successful.
void	MarkNetworkUpdate () override
	Mark for attribute check on the next network update.
virtual void	GetDependencyNodes (PODVector< Node * > &dest)
	Return the depended on nodes to order network updates.
virtual void	DrawDebugGeometry (DebugRenderer *debug, bool depthTest)
	Visualize the component as debug geometry.
void	SetEnabled (bool enable)
void	Remove ()
	Remove from the scene node. If no other shared pointer references exist, causes immediate deletion.
unsigned	GetID () const
bool	IsReplicated () const
Node *	GetNode () const
Scene *	GetScene () const
	Return the scene the node belongs to.
bool	IsEnabled () const
bool	IsEnabledEffective () const
Component *	GetComponent (StringHash type) const
	Return component in the same scene node by type. If there are several, returns the first.
void	GetComponents (PODVector< Component * > &dest, StringHash type) const
	Return components in the same scene node by type.
template<class T >
T *	GetComponent () const
	Template version of returning a component in the same scene node by type.
template<class T >
void	GetComponents (PODVector< T * > &dest) const
	Template version of returning components in the same scene node by type.
void	AddReplicationState (ComponentReplicationState *state)
	Add a replication state that is tracking this component.
void	PrepareNetworkUpdate ()
	Prepare network update by comparing attributes and marking replication states dirty as necessary.
void	CleanupConnection (Connection *connection)
Public Member Functions inherited from Dviglo::Animatable
	Animatable (Context *context)
	Construct.
	~Animatable () override
	Destruct.
bool	LoadXML (const XMLElement &source) override
	Load from XML data. Return true if successful.
bool	LoadJSON (const JSONValue &source) override
	Load from JSON data. Return true if successful.
void	SetAnimationEnabled (bool enable)
void	SetAnimationTime (float time)
	Set time position of all attribute animations or an object animation manually. Automatic update should be disabled in this case.
void	SetObjectAnimation (ObjectAnimation *objectAnimation)
void	SetAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode=WM_LOOP, float speed=1.0f)
	Set attribute animation.
void	SetAttributeAnimationWrapMode (const String &name, WrapMode wrapMode)
	Set attribute animation wrap mode.
void	SetAttributeAnimationSpeed (const String &name, float speed)
	Set attribute animation speed.
void	SetAttributeAnimationTime (const String &name, float time)
	Set attribute animation time position manually. Automatic update should be disabled in this case.
void	RemoveObjectAnimation ()
	Remove object animation. Same as calling SetObjectAnimation with a null pointer.
void	RemoveAttributeAnimation (const String &name)
	Remove attribute animation. Same as calling SetAttributeAnimation with a null pointer.
bool	GetAnimationEnabled () const
ObjectAnimation *	GetObjectAnimation () const
ValueAnimation *	GetAttributeAnimation (const String &name) const
	Return attribute animation.
WrapMode	GetAttributeAnimationWrapMode (const String &name) const
	Return attribute animation wrap mode.
float	GetAttributeAnimationSpeed (const String &name) const
	Return attribute animation speed.
float	GetAttributeAnimationTime (const String &name) const
	Return attribute animation time position.
void	SetObjectAnimationAttr (const ResourceRef &value)
	Set object animation attribute.
ResourceRef	GetObjectAnimationAttr () const
	Return object animation attribute.
Public Member Functions inherited from Dviglo::Serializable
	Serializable (Context *context)
	Construct.
	~Serializable () override
	Destruct.
virtual void	OnSetAttribute (const AttributeInfo &attr, const Variant &src)
	Handle attribute write access. Default implementation writes to the variable at offset, or invokes the set accessor.
virtual void	OnGetAttribute (const AttributeInfo &attr, Variant &dest) const
	Handle attribute read access. Default implementation reads the variable at offset, or invokes the get accessor.
virtual const Vector< AttributeInfo > *	GetAttributes () const
	Return attribute descriptions, or null if none defined.
virtual const Vector< AttributeInfo > *	GetNetworkAttributes () const
	Return network replication attribute descriptions, or null if none defined.
virtual bool	Load (Deserializer &source)
	Load from binary data. Return true if successful.
virtual void	ApplyAttributes ()
	Apply attribute changes that can not be applied immediately. Called after scene load or a network update.
virtual bool	SaveDefaultAttributes () const
	Return whether should save default-valued attributes into XML. Default false.
bool	SetAttribute (unsigned index, const Variant &value)
bool	SetAttribute (const String &name, const Variant &value)
	Set attribute by name. Return true if successfully set.
void	SetInstanceDefault (bool enable)
	Set instance-level default flag.
void	ResetToDefault ()
	Reset all editable attributes to their default values.
void	RemoveInstanceDefault ()
	Remove instance's default values if they are set previously.
void	SetTemporary (bool enable)
void	SetInterceptNetworkUpdate (const String &attributeName, bool enable)
	Enable interception of an attribute from network updates. Intercepted attributes are sent as events instead of applying directly. This can be used to implement client side prediction.
void	AllocateNetworkState ()
	Allocate network attribute state.
void	WriteInitialDeltaUpdate (Serializer &dest, unsigned char timeStamp)
	Write initial delta network update.
void	WriteDeltaUpdate (Serializer &dest, const DirtyBits &attributeBits, unsigned char timeStamp)
	Write a delta network update according to dirty attribute bits.
void	WriteLatestDataUpdate (Serializer &dest, unsigned char timeStamp)
	Write a latest data network update.
bool	ReadDeltaUpdate (Deserializer &source)
	Read and apply a network delta update. Return true if attributes were changed.
bool	ReadLatestDataUpdate (Deserializer &source)
	Read and apply a network latest data update. Return true if attributes were changed.
Variant	GetAttribute (unsigned index) const
Variant	GetAttribute (const String &name) const
	Return attribute value by name. Return empty if not found.
Variant	GetAttributeDefault (unsigned index) const
Variant	GetAttributeDefault (const String &name) const
	Return attribute default value by name. Return empty if not found.
unsigned	GetNumAttributes () const
unsigned	GetNumNetworkAttributes () const
	Return number of network replication attributes.
bool	IsTemporary () const
bool	GetInterceptNetworkUpdate (const String &attributeName) const
	Return whether an attribute's network updates are being intercepted.
NetworkState *	GetNetworkState () const
	Return the network attribute state, if allocated.
Public Member Functions inherited from Dviglo::Object
	Object (Context *context)
	Construct.
	~Object () override
	Destruct. Clean up self from event sender & receiver structures.
virtual StringHash	GetType () const =0
virtual const String &	GetTypeName () const =0
virtual const TypeInfo *	GetTypeInfo () const =0
	Return type info.
virtual void	OnEvent (Object *sender, StringHash eventType, VariantMap &eventData)
	Handle event.
bool	IsInstanceOf (StringHash type) const
	Check current instance is type of specified type.
bool	IsInstanceOf (const TypeInfo *typeInfo) const
	Check current instance is type of specified type.
template<typename T >
bool	IsInstanceOf () const
	Check current instance is type of specified class.
template<typename T >
T *	Cast ()
	Cast the object to specified most derived class.
template<typename T >
const T *	Cast () const
	Cast the object to specified most derived class.
void	SubscribeToEvent (StringHash eventType, EventHandler *handler)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, EventHandler *handler)
	Subscribe to a specific sender's event.
void	SubscribeToEvent (StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to an event that can be sent by any sender.
void	SubscribeToEvent (Object *sender, StringHash eventType, const std::function< void(StringHash, VariantMap &)> &function, void *userData=nullptr)
	Subscribe to a specific sender's event.
void	UnsubscribeFromEvent (StringHash eventType)
	Unsubscribe from an event.
void	UnsubscribeFromEvent (Object *sender, StringHash eventType)
	Unsubscribe from a specific sender's event.
void	UnsubscribeFromEvents (Object *sender)
	Unsubscribe from a specific sender's events.
void	UnsubscribeFromAllEvents ()
	Unsubscribe from all events.
void	UnsubscribeFromAllEventsExcept (const PODVector< StringHash > &exceptions, bool onlyUserData)
	Unsubscribe from all events except those listed, and optionally only those with userdata (script registered events).
void	SendEvent (StringHash eventType)
	Send event to all subscribers.
void	SendEvent (StringHash eventType, VariantMap &eventData)
	Send event with parameters to all subscribers.
VariantMap &	GetEventDataMap () const
	Return a preallocated map for event data. Used for optimization to avoid constant re-allocation of event data maps.
template<typename... Args>
void	SendEvent (StringHash eventType, Args... args)
	Send event with variadic parameter pairs to all subscribers. The parameter pairs is a list of paramID and paramValue separated by comma, one pair after another.
Context *	GetContext () const
	Return execution context.
const Variant &	GetGlobalVar (StringHash key) const
const VariantMap &	GetGlobalVars () const
void	SetGlobalVar (StringHash key, const Variant &value)
Object *	GetSubsystem (StringHash type) const
	Return subsystem by type.
Object *	GetEventSender () const
	Return active event sender. Null outside event handling.
EventHandler *	GetEventHandler () const
	Return active event handler. Null outside event handling.
bool	HasSubscribedToEvent (StringHash eventType) const
	Return whether has subscribed to an event without specific sender.
bool	HasSubscribedToEvent (Object *sender, StringHash eventType) const
	Return whether has subscribed to a specific sender's event.
bool	HasEventHandlers () const
	Return whether has subscribed to any event.
template<class T >
T *	GetSubsystem () const
	Template version of returning a subsystem.
const String &	GetCategory () const
void	SetBlockEvents (bool block)
	Block object from sending and receiving events.
bool	GetBlockEvents () const
	Return sending and receiving events blocking status.
Public Member Functions inherited from Dviglo::RefCounted
	RefCounted ()
	Construct. Allocate the reference count structure and set an initial self weak reference.
virtual	~RefCounted ()
	Destruct. Mark as expired and also delete the reference count structure if no outside weak references exist.
	RefCounted (const RefCounted &rhs)=delete
	Prevent copy construction.
RefCounted &	operator= (const RefCounted &rhs)=delete
	Prevent assignment.
void	AddRef ()
void	ReleaseRef ()
int	Refs () const
int	WeakRefs () const
RefCount *	RefCountPtr ()
	Return pointer to the reference count structure.

Static Public Member Functions
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Animatable
static void	RegisterObject (Context *context)
Static Public Member Functions inherited from Dviglo::Object
static const TypeInfo *	GetTypeInfoStatic ()
	Return type info static.

Protected Attributes
WeakPtr< Audio >	audio_
	Audio subsystem.
String	soundType_
	SoundSource type, determines the master gain group.
StringHash	soundTypeHash_
	SoundSource type hash.
float	frequency_
	Frequency.
float	gain_
	Gain.
float	attenuation_
	Attenuation.
float	panning_
	Stereo panning.
float	masterGain_ {}
	Effective master gain.
bool	sendFinishedEvent_
	Whether finished event should be sent on playback stop.
AutoRemoveMode	autoRemove_
	Automatic removal mode.
Protected Attributes inherited from Dviglo::Component
Node *	node_
	Scene node.
unsigned	id_
	Unique ID within the scene.
bool	networkUpdate_
	Network update queued flag.
bool	enabled_
	Enabled flag.
Protected Attributes inherited from Dviglo::Animatable
bool	animationEnabled_
	Animation enabled.
SharedPtr< ObjectAnimation >	objectAnimation_
	Animation.
HashSet< const AttributeInfo * >	animatedNetworkAttributes_
	Animated network attribute set.
HashMap< String, SharedPtr< AttributeAnimationInfo > >	attributeAnimationInfos_
	Attribute animation infos.
Protected Attributes inherited from Dviglo::Serializable
UniquePtr< NetworkState >	networkState_
	Network attribute state.
Protected Attributes inherited from Dviglo::Object
Context *	context_
	Execution context.

Private Member Functions
	URHO3D_OBJECT (SoundSource, Component)
void	PlayLockless (Sound *sound)
	Play a sound without locking the audio mutex. Called internally.
void	PlayLockless (const SharedPtr< SoundStream > &stream)
	Play a sound stream without locking the audio mutex. Called internally.
void	StopLockless ()
	Stop sound without locking the audio mutex. Called internally.
void	SetPlayPositionLockless (signed char *pos)
	Set new playback position without locking the audio mutex. Called internally.
void	MixMonoToMono (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix mono sample to mono buffer.
void	MixMonoToStereo (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix mono sample to stereo buffer.
void	MixMonoToMonoIP (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix mono sample to mono buffer interpolated.
void	MixMonoToStereoIP (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix mono sample to stereo buffer interpolated.
void	MixStereoToMono (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix stereo sample to mono buffer.
void	MixStereoToStereo (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix stereo sample to stereo buffer.
void	MixStereoToMonoIP (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix stereo sample to mono buffer interpolated.
void	MixStereoToStereoIP (Sound *sound, int *dest, unsigned samples, int mixRate)
	Mix stereo sample to stereo buffer interpolated.
void	MixZeroVolume (Sound *sound, unsigned samples, int mixRate)
	Advance playback pointer without producing audible output.
void	MixNull (float timeStep)
	Advance playback pointer to simulate audio playback in headless mode.

Private Attributes
SharedPtr< Sound >	sound_
	Sound that is being played.
SharedPtr< SoundStream >	soundStream_
	Sound stream that is being played.
volatile signed char *	position_
	Playback position.
volatile int	fractPosition_
	Playback fractional position.
volatile float	timePosition_
	Playback time position.
SharedPtr< Sound >	streamBuffer_
	Decode buffer.
int	unusedStreamSize_
	Unused stream bytes from previous frame.

Additional Inherited Members
Protected Member Functions inherited from Dviglo::Component
void	OnAttributeAnimationAdded () override
	Handle attribute animation added.
void	OnAttributeAnimationRemoved () override
	Handle attribute animation removed.
virtual void	OnNodeSet (Node *node)
	Handle scene node being assigned at creation.
virtual void	OnSceneSet (Scene *scene)
	Handle scene being assigned. This may happen several times during the component's lifetime. Scene-wide subsystems and events are subscribed to here.
virtual void	OnMarkedDirty (Node *node)
	Handle scene node transform dirtied.
virtual void	OnNodeSetEnabled (Node *node)
	Handle scene node enabled status changing.
void	SetID (unsigned id)
void	SetNode (Node *node)
	Set scene node. Called by Node when creating the component.
void	HandleAttributeAnimationUpdate (StringHash eventType, VariantMap &eventData)
	Handle scene attribute animation update event.
Component *	GetFixedUpdateSource ()
	Return a component from the scene root that sends out fixed update events (either PhysicsWorld or PhysicsWorld2D). Return null if neither exists.
void	DoAutoRemove (AutoRemoveMode mode)
	Perform autoremove. Called by subclasses. Caller should keep a weak pointer to itself to check whether was actually removed, and return immediately without further member operations in that case.
Protected Member Functions inherited from Dviglo::Animatable
virtual Animatable *	FindAttributeAnimationTarget (const String &name, String &outName)
	Find target of an attribute animation from object hierarchy by name.
void	SetObjectAttributeAnimation (const String &name, ValueAnimation *attributeAnimation, WrapMode wrapMode, float speed)
	Set object attribute animation internal.
void	OnObjectAnimationAdded (ObjectAnimation *objectAnimation)
	Handle object animation added.
void	OnObjectAnimationRemoved (ObjectAnimation *objectAnimation)
	Handle object animation removed.
void	UpdateAttributeAnimations (float timeStep)
	Update attribute animations.
bool	IsAnimatedNetworkAttribute (const AttributeInfo &attrInfo) const
	Is animated network attribute.
AttributeAnimationInfo *	GetAttributeAnimationInfo (const String &name) const
	Return attribute animation info.
void	HandleAttributeAnimationAdded (StringHash eventType, VariantMap &eventData)
	Handle attribute animation added.
void	HandleAttributeAnimationRemoved (StringHash eventType, VariantMap &eventData)
	Handle attribute animation removed.

Detailed Description

Sound source component with stereo position. A sound source needs to be created to a node to be considered "enabled" and be able to play, however that node does not need to belong to a scene.

Member Function Documentation

GetAttenuation()

float Dviglo::SoundSource::GetAttenuation ( ) const

inline

Return attenuation.

GetAutoRemoveMode()

AutoRemoveMode Dviglo::SoundSource::GetAutoRemoveMode ( ) const

inline

Return automatic removal mode on sound playback completion.

GetFrequency()

float Dviglo::SoundSource::GetFrequency ( ) const

inline

Return frequency.

GetGain()

float Dviglo::SoundSource::GetGain ( ) const

inline

Return gain.

GetPanning()

float Dviglo::SoundSource::GetPanning ( ) const

inline

Return stereo panning.

GetSound()

Sound* Dviglo::SoundSource::GetSound ( ) const

inline

Return sound.

GetSoundType()

String Dviglo::SoundSource::GetSoundType ( ) const

inline

Return sound type, determines the master gain group.

GetTimePosition()

float Dviglo::SoundSource::GetTimePosition ( ) const

inline

Return playback time position.

IsPlaying()

bool Dviglo::SoundSource::IsPlaying

(

)

const

Return whether is playing.

RegisterObject()

void Dviglo::SoundSource::RegisterObject ( Context *  context )

static

Register object factory.

SetAutoRemoveMode()

void Dviglo::SoundSource::SetAutoRemoveMode

(

AutoRemoveMode

mode

)

Set to remove either the sound source component or its owner node from the scene automatically on sound playback completion. Disabled by default.

SetFrequency()

void Dviglo::SoundSource::SetFrequency

(

float

frequency

)

Set frequency.

SetGain()

void Dviglo::SoundSource::SetGain

(

float

gain

)

Set gain. 0.0 is silence, 1.0 is full volume.

SetPanning()

void Dviglo::SoundSource::SetPanning

(

float

panning

)

Set stereo panning. -1.0 is full left and 1.0 is full right.

SetSoundType()

void Dviglo::SoundSource::SetSoundType

(

const String &

type

)

Set sound type, determines the master gain group.

---

The documentation for this class was generated from the following files:

• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Audio/SoundSource.h
• /home/runner/work/Dviglo/Dviglo/DvigloRepository/Source/Urho3D/Audio/SoundSource.cpp
